Baja Designs OnX6 Arc Dual Control LED Light Bar – Amber/White

Get the versatility of amber and white off-road lighting in a single premium LED light bar with the Baja Designs OnX6 Arc Dual Control. The Dual Control design allows the inner and outer sections of the light bar to be controlled independently, giving you multiple lighting options from one clean installation.

Available in 30-inch, 40-inch, and 50-inch sizes, the OnX6 Arc Dual Control combines Baja Designs' curved OnX6 platform with a Driving/Combo beam pattern and Baja Amber/Clear lenses for excellent visibility in changing driving conditions.

The amber and white sections can be controlled separately with the appropriate wiring, making this light especially useful for off-road vehicles that need amber illumination for dust, fog, rain, or other low-visibility conditions while retaining powerful white lighting for clear nighttime driving.

Key Features

• Dual Control amber and white lighting

• Independently controllable inner and outer light sections

• Curved OnX6 Arc housing

• Driving/Combo beam pattern

• Available in 30", 40", and 50" sizes

• Baja Amber/Clear lens configuration

• Hard-coated polycarbonate lenses

• Aircraft-grade aluminum housing with Mil-Spec hard anodizing

• Billet-machined aluminum bezels

• Stainless-steel mounting hardware and brackets

• Built-in overvoltage protection

• IP69K water-resistance rating

• IK10 mechanical impact resistance

• Exceeds MIL-STD810G durability testing

• Approximately 49,930-hour LED life expectancy

• Replaceable lenses and optics through Baja Designs uService

• 5000K white daylight output

• Baja Designs Limited Lifetime Warranty

Driving/Combo Beam Pattern

The Driving/Combo pattern is designed to provide both distance and near-field illumination from a single light bar.

It combines wide-driving optics with focused spot optics to produce a smooth blend of light in front of and downrange from the vehicle. This makes the OnX6 Arc Dual Control well suited for trail driving, desert running, overlanding, and other nighttime off-road applications where both width and distance are important.

Dual Control Amber & White Lighting

Unlike a conventional single-color LED light bar, the OnX6 Dual Control allows the light's sections to be operated independently.

This provides the flexibility of having both amber and white illumination in one light bar.

Amber lighting can be especially useful in dust, fog, rain, and other situations where reflected white light can reduce visibility. White lighting provides maximum visibility and natural color rendition during clear nighttime conditions.

With the appropriate wiring and switches, drivers can select the lighting configuration that best matches current conditions.

Available Sizes

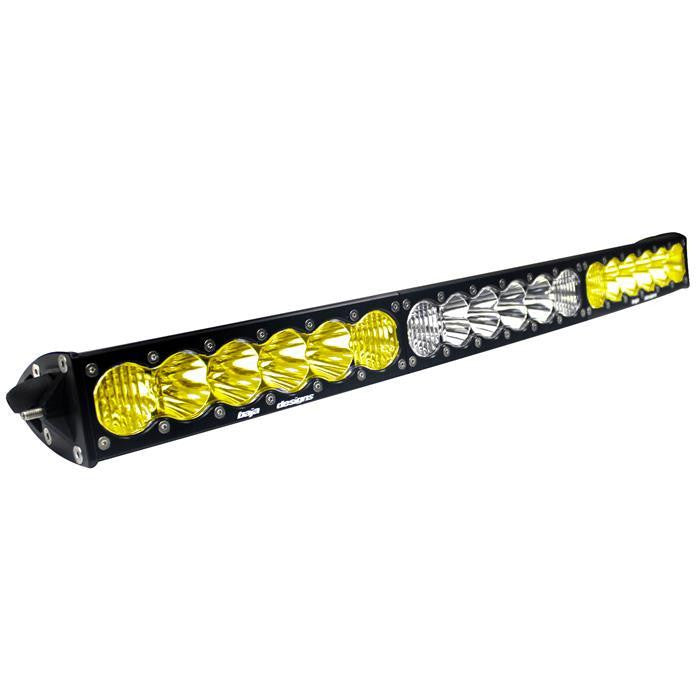

30-Inch – Part # 523003DC

• 30" long

• 4.29" deep

• 2.69" high

• 11.45 lbs.

• 18 LEDs

• Up to 28,938 lumens

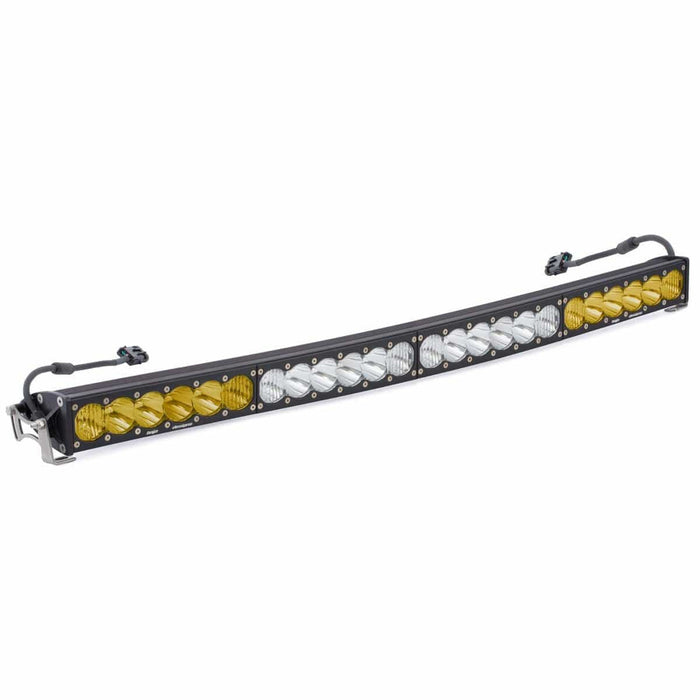

40-Inch – Part # 524003DC

• 40" long

• 4.29" deep

• 2.69" high

• 15.05 lbs.

• 24 LEDs

• Up to 39,220 lumens

• 340W / 26.8A on high

• 284W / 22.4A on low

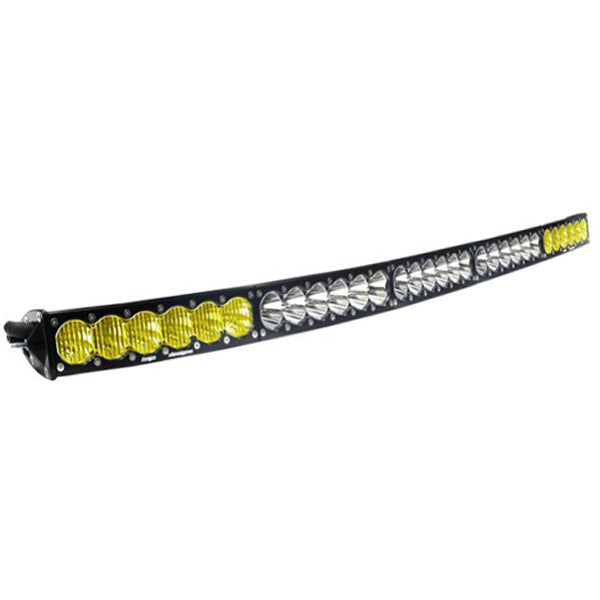

50-Inch – Part # 525003DC

• 50" long

• 4.29" deep

• 2.69" high

• 18.65 lbs.

• 30 LEDs

• Up to 39,910 lumens

Wiring Requirements

Wiring harnesses are not included with the light bar.

Because this is a Dual Control light bar, proper wiring is important to take advantage of its independent lighting functions.

For basic on/off operation, Baja Designs specifies two 64-0115 wiring harnesses.

To access the Hi/Low functionality, Baja Designs specifies one 64-0119 harness and one 64-0115 harness.

Vehicles equipped with factory auxiliary/upfitter switches may be able to integrate the OnX6 Dual Control into those circuits using an appropriately designed relay harness. Always verify circuit amperage and wiring requirements before connecting high-output auxiliary lighting directly to factory switches.

Ford Bronco 2021–2026 Factory AUX / Upfitter Switch Wiring

For 2021–2026 Ford Bronco models equipped with the factory AUX/upfitter switches, the Baja Designs OnX6 Arc Dual Control LED Light Bar can be integrated with the Bronco's factory switch system using Baja Designs Upfitter Wiring Harness Part # 64-0094.

Two (2) Baja Designs 64-0094 upfitter harnesses are required for the OnX6 Arc Dual Control.

Standard Ford Bronco AUX Switch Configuration

For the standard 2021–2026 Ford Bronco (non-Raptor), the OnX6 Arc Dual Control can be wired so the amber and white lighting circuits are controlled independently from the factory AUX switches:

• AUX 1 – 30 Amp: Connect the two amber lighting sections
• AUX 2 – 15 Amp: Connect the white lighting circuit

This provides independent control of the OnX6 Arc's amber and white output directly from the Bronco's factory overhead AUX switches, eliminating the need to install separate aftermarket switches inside the vehicle.

Bronco Upfitter Wiring Requirements

• Vehicle: 2021–2026 Ford Bronco with factory AUX/upfitter switches
• Excludes: Bronco Raptor AUX wiring configuration
• Baja Designs Harness: Part # 64-0094
• Quantity Required: 2
• Amber Circuit: AUX 1 (30A)
• White Circuit: AUX 2 (15A)
• Control: Independent amber and white operation from the factory AUX switches

Important: The Ford Bronco and Bronco Raptor use different factory AUX switch amperage configurations, so the AUX 1/AUX 2 recommendations above are specifically for the standard Ford Bronco and should not be applied to the Bronco Raptor.

Always verify the electrical requirements of the specific OnX6 Arc Dual Control light bar size being installed and confirm that the connected load does not exceed the rated capacity of the selected factory AUX circuit.

What's Included

• (1) Baja Designs OnX6 Arc Dual Control LED Light Bar

• Mounting brackets

• Mounting hardware

Wiring harness sold separately.

Universal Fitment

The Baja Designs OnX6 Arc Dual Control is a universal-fit auxiliary LED light bar and can be installed on trucks, SUVs, Jeeps, Ford Broncos, Toyota 4Runners, Tacomas, FJ Cruisers, UTVs, and other off-road vehicles when sufficient mounting space and appropriate brackets are available.

Always verify the dimensions of the selected light bar against the bumper, roof rack, grille, or other mounting location before ordering.

Why Choose the OnX6 Arc Dual Control?

The OnX6 Arc Dual Control is an excellent choice for drivers who want the benefits of both amber and white auxiliary lighting without installing two separate light bars.

Its curved housing works especially well with bumpers and roof-mounted applications designed around an arc-style light bar, while the independently controlled lighting sections provide substantially more flexibility than a conventional single-color LED bar.

For premium off-road builds where lighting performance, durability, and a clean integrated appearance are priorities, the Baja Designs OnX6 Arc Dual Control provides an exceptionally versatile lighting solution.
