Baja Designs OnX6/S8/XL Upfitter Wiring Harness – 64-0094

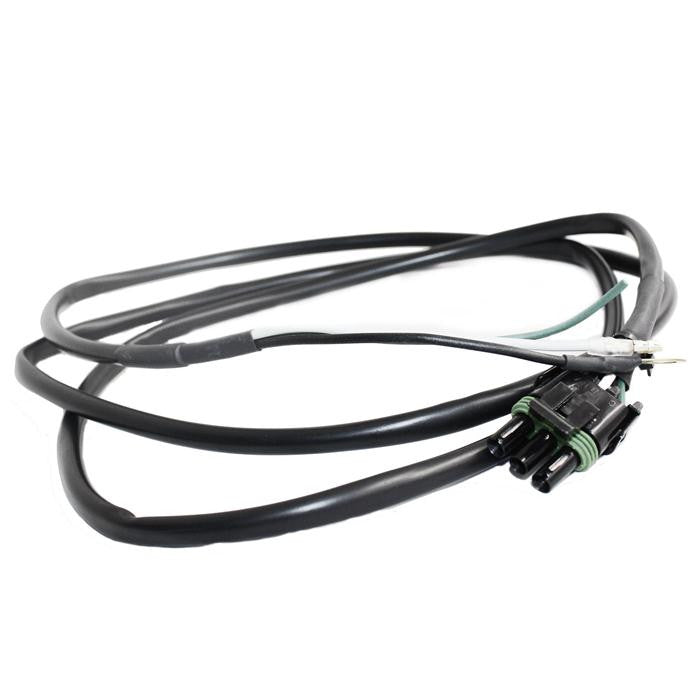

Connect your Baja Designs auxiliary lighting directly to your vehicle's factory AUX/upfitter switches with the Baja Designs OnX6/S8/XL Upfitter Wiring Harness.

Designed for vehicles already equipped with factory auxiliary switches or an aftermarket power-management system, this harness eliminates the need to install a separate Baja Designs switch inside the vehicle. It provides a clean and straightforward way to integrate compatible Baja Designs OnX6, S8, and XL Series lights with your existing switch system.

Key Features

• Designed for vehicles with factory AUX/upfitter switches

• Compatible with Baja Designs OnX6, S8, and XL Series lights

• Works with aftermarket power-management systems such as sPOD

• Single 3-pin connection

• Splice-style terminals for integration with the vehicle's upfitter wiring

• No separate switch included or required when using an existing upfitter switch

• Simplifies installation of Baja Designs auxiliary lighting

• Universal application

2021-2026 Ford Bronco with Factory AUX Switches

This harness is an excellent wiring solution for 2021-2026 Ford Bronco models equipped with the factory AUX/upfitter switch system.

It allows compatible Baja Designs OnX6, S8, or XL lighting to be connected to the Bronco's factory auxiliary switch wiring rather than installing an additional aftermarket switch in the cabin.

Always verify the amperage requirements of the Baja Designs light being installed and connect it to an appropriately rated Ford Bronco AUX circuit.

OnX6 Dual Control Light Bar Installation

When installing a Baja Designs OnX6 Dual Control LED Light Bar with a factory upfitter/AUX switch system, two (2) Baja Designs 64-0094 harnesses are required to independently control the two lighting circuits.

This is particularly useful with the OnX6 Arc Dual Control Amber/White LED Light Bar, allowing its independently controlled lighting sections to be connected to separate factory AUX switches.

For a 2021-2026 Ford Bronco with factory AUX switches using an OnX6 Dual Control light bar:

• Quantity Required: 2

• Harness Part #: 64-0094

• Baja Designs SKU: 640094

• Connects to factory Bronco AUX/upfitter wiring

• Allows separate control of the Dual Control light bar circuits when properly wired

Using Two Lights on One Harness

If you plan to operate two compatible Baja Designs lights from a single 64-0094 harness, Baja Designs specifies that the 3-Pin OnX6/S8/XL 2-Light Splitter, Part # 61-3608, is also required.

Always verify the combined wattage and amperage of the lights against the capacity of the selected AUX circuit before connecting multiple lights to a single circuit.

Compatible Baja Designs Lighting

Designed for use with compatible:

• OnX6 Series LED Light Bars

• S8 Series LED Light Bars

• XL Series LED Lights

Specifications

Manufacturer: Baja Designs
Part Number: 64-0094
SKU: 640094
Application: OnX6 / S8 / XL
Harness Type: Upfitter / Auxiliary Switch Harness
Connector: Single 3-Pin Connection
Terminal Type: Splice Connectors
Switch Included: No
Mounting Hardware Included: No
Fitment: Universal

What's Included

• (1) Baja Designs OnX6/S8/XL Upfitter Wiring Harness

Note: One harness is included. Applications requiring independent control of multiple circuits, including an OnX6 Dual Control light bar installation, may require more than one harness.

Manufacturer Part Number

Baja Designs Part #: 64-0094
Baja Designs SKU: 640094
