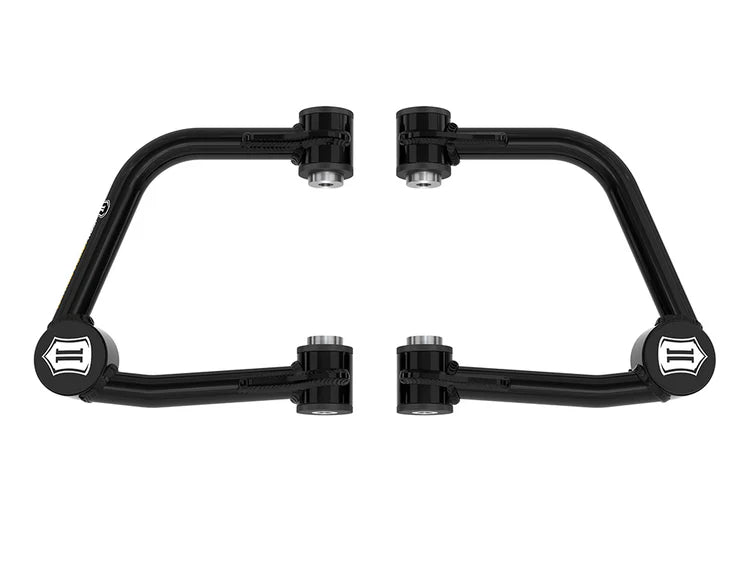

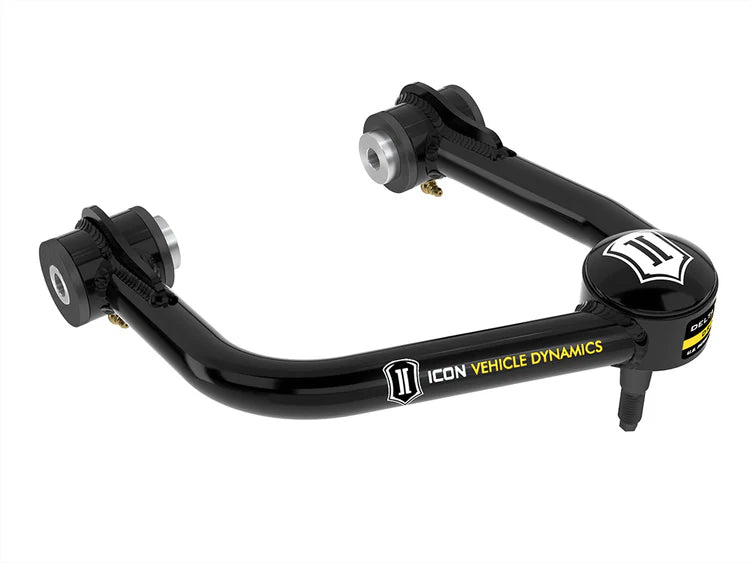

ICON Tubular Upper Control Arms with Delta Joint PRO for Ford Bronco (2021-2026)

Upgrade your suspension geometry and maximize wheel travel with ICON Vehicle Dynamics Tubular Upper Control Arms for the 2021-2026 Ford Bronco. Designed specifically for lifted Broncos, these heavy-duty upper control arms feature built-in caster correction, enhanced articulation, and premium serviceable components to deliver improved ride quality, handling, and off-road performance.

Constructed from CNC-formed 1026 DOM steel tubing, these tubular control arms provide exceptional strength and durability while offering a more affordable alternative to ICON's billet aluminum upper control arms. At the heart of the system is ICON's all-new Delta Joint PRO, engineered to provide up to 90 degrees of bind-free articulation for maximum suspension travel when paired with aftermarket coilovers and performance shocks.

Whether you're tackling challenging trails, high-speed desert terrain, or daily driving a lifted Bronco, these control arms deliver the alignment correction, durability, and suspension performance needed to get the most from your vehicle.

Key Features

• Fits 2021-2026 Ford Bronco models
• Built-in caster correction improves alignment on lifted Broncos
• Increases suspension travel and articulation
• Delta Joint PRO delivers up to 90 degrees of articulation without binding
• Fully serviceable and rebuildable Delta Joint PRO design
• Larger Delta Joint PRO provides 56% more bearing surface than standard Delta Joints
• Serviceable and greaseable dual-stage pivot bushings
• CNC-machined housings for precision fit and performance
• Heavy-duty 1026 DOM steel tube construction
• CNC-formed and fixture-welded for superior strength
• Durable multi-stage black powder coat finish
• Includes anodized billet aluminum Delta Joint PRO dust caps
• Designed for use with performance coilovers and suspension systems
• Improves front-end stability, steering feel, and handling

Delta Joint PRO Advantages

The ICON Delta Joint PRO represents the next evolution in suspension articulation and durability:

• Up to 90° of total articulation
• 14% greater range of motion than the original Delta Joint
• Chromoly ball and shaft construction
• Rockwell C55 hardened bearing surface
• Graphite-impregnated sintered metal races
• Enhanced lubrication channels for improved grease distribution
• Improved sealing for extended service life
• Fully rebuildable and serviceable design

Benefits for Lifted Broncos

When lifting a Bronco, factory upper control arms can limit alignment adjustment and suspension travel. ICON Tubular Upper Control Arms address these issues by:

• Restoring proper caster alignment
• Improving steering stability and tracking
• Reducing tire wear
• Increasing suspension droop travel
• Eliminating binding at full suspension extension
• Supporting larger tire fitments up to 37 inches

Specifications

• Brand: ICON Vehicle Dynamics
• Construction: 1026 DOM Steel Tubing
• Finish: Black Powder Coat
• Joint Type: Delta Joint PRO
• Weight: 24 lbs
• Serviceable Components: Yes
• Rebuildable Components: Yes

Wheel & Tire Recommendations

Sasquatch Package

• 17x8.5 Wheels | 0mm Offset | 4.75" Backspacing
• 18x9 Wheels | 0mm Offset | 5.00" Backspacing
• 20x9 Wheels | 0mm Offset | 5.00" Backspacing

Non-Sasquatch Package

• 17x8.5 Wheels | 25mm Offset | 5.75" Backspacing
• 18x9 Wheels | 25mm Offset | 6.00" Backspacing

Recommended Tire Size

• Up to 37x12.50 Tires

Vehicle Fitment

Fits:

• 2021 Ford Bronco
• 2022 Ford Bronco
• 2023 Ford Bronco
• 2024 Ford Bronco
• 2025 Ford Bronco
• 2026 Ford Bronco

Does not fit Ford Bronco Raptor models.

Get the most out of your Bronco's suspension system with ICON Tubular Upper Control Arms featuring Delta Joint PRO technology, delivering superior articulation, alignment correction, and durability for serious on- and off-road performance.
