ICON Stage 7 Suspension System with Tubular Links & CDCV – 2010-2024 4Runner & 2010-2014 FJ Cruiser | K53067T

Take your Toyota's suspension performance and adjustability to the highest level with the ICON Vehicle Dynamics Stage 7 Suspension System with Tubular Suspension Links, part #K53067T.

Designed for the 2010-2024 Toyota 4Runner and 2010-2014 Toyota FJ Cruiser, the ICON Stage 7 system combines Extended Travel 2.5 Series Remote Reservoir front coilovers with Compression Damping Control Valves (CDCV), tubular steel upper control arms with ICON Delta Joint, tubular steel rear lower links, tubular steel rear upper links, an adjustable rear track bar, 2-inch rear lift coil springs, and 2.5 Aluminum Series Remote Reservoir rear shocks with CDCV.

The defining feature of Stage 7 is ICON's Compression Damping Control Valve technology. Both the front coilovers and rear shocks provide 10 levels of compression damping adjustment, allowing the suspension to be quickly tuned for changing terrain, vehicle load and driving style without tools.

The result is a premium suspension package combining adjustable damping, increased wheel travel, improved suspension geometry, rear axle positioning and serious off-road capability while maintaining excellent street manners.

Vehicle Fitment

Toyota 4Runner

• 2010-2024

Toyota FJ Cruiser

• 2010-2014

IMPORTANT: ICON lists the complete K53067T Stage 7 system specifically for 2010-2024 Toyota 4Runner and 2010-2014 Toyota FJ Cruiser applications.

KDSS Compatibility

The K53067T is compatible with KDSS-equipped vehicles.

Because Stage 7 includes the ICON 54200 Adjustable Rear Track Bar, the system already incorporates the rear axle alignment component needed for proper KDSS fitment.

ICON notes:

• Front sway bar relocation brackets are not used on KDSS-equipped vehicles

• Certain model years require trimming for proper front reservoir bracket fitment

Features

• Complete ICON Stage 7 Suspension System

• Fits 2010-2024 Toyota 4Runner

• Fits 2010-2014 Toyota FJ Cruiser

• Adjustable 0-3.5" front lift

• ICON Extended Travel 2.5 Series Remote Reservoir front coilovers

• Front coilovers feature 10-position CDCV compression adjustment

• Tool-free compression damping adjustment

• Increased front droop and wheel travel

• ICON tubular steel upper control arms

• ICON patented Delta Joint

• Improved front suspension and alignment geometry

• Increased caster over stock

• ICON tubular steel rear lower links

• ICON tubular steel rear upper links

• Adjustable rear track bar included

• Rear links provide pinion-angle adjustment

• Adjustable track bar helps properly center the rear axle

• 2" rear lift coil springs

• ICON 2.5 Aluminum Series Remote Reservoir rear shocks

• Rear shocks feature 10-position CDCV compression adjustment

• Remote reservoir shocks front and rear

• Increased shock oil capacity

• Improved heat dissipation

• More consistent damping during demanding use

• Vehicle-specific front and rear shock tuning

• Increased wheel travel and ride quality over stock

• Heavy-duty 7/8" front shock shafts

• 6061 aircraft-grade CNC-machined shock components

• Corrosion-resistant CAD-plated coilover shock bodies

• FK Rod End bearings for increased longevity and minimal deflection

• Fully serviceable shocks

• Bolt-on installation

• No cutting or welding required

• ICON Vehicle Dynamics part number K53067T

What Does Stage 7 Add Over Stage 6?

The major upgrade from ICON K53066T Stage 6 to K53067T Stage 7 is adjustable compression damping.

Stage 6 already includes:

• Extended Travel Remote Reservoir front coilovers

• Tubular Delta Joint upper control arms

• Tubular rear lower links

• Tubular rear upper links

• Adjustable rear track bar

• 2" rear coil springs

• 2.5 Remote Reservoir rear shocks

Stage 7 upgrades the shocks to:

• ICON 58747C Extended Travel Remote Reservoir CDCV front coilovers

• ICON 57810CP Remote Reservoir CDCV rear shocks

• 10 levels of compression damping adjustment front and rear

• Tool-free adjustment

This allows the suspension to be quickly tuned for:

• Daily street driving

• Trail driving

• Rock crawling

• High-speed dirt roads

• Washboard roads

• Overlanding

• Added cargo

• Heavier vehicle configurations

• Changing terrain

• Personal ride preference

ICON CDCV – Compression Damping Control Valve

ICON's Compression Damping Control Valve is an externally adjustable valve built into the shock reservoir.

The valve restricts oil flow into the reservoir to provide 10 distinct levels of compression damping force.

Increasing the setting creates firmer compression damping for more aggressive driving or heavier vehicle loads.

Reducing the setting provides a softer, more compliant response for rough terrain and slower-speed trail use.

Because K53067T includes CDCV at both the front and rear, the entire suspension system can be tuned rather than only one end of the vehicle.

Adjustable 0-3.5" Front Lift

The ICON Stage 7 front coilovers provide 0 to 3.5 inches of adjustable front lift.

This allows you to set front ride height based on your desired stance, tire size and vehicle configuration.

Unlike a basic spacer lift, ICON's coilovers replace the factory shock and spring assemblies with performance suspension components engineered to improve:

• Ride quality

• Shock damping

• Suspension travel

• Vehicle control

• Off-road performance

• Front ride height

Front Lift Range: 0-3.5"

ICON notes that published coilover heights are based on a stock-equipped vehicle. Added weight from bumpers, winches, skid plates and other accessories can affect actual ride height.

Extended Travel 2.5 CDCV Remote Reservoir Front Coilovers

K53067T uses ICON 58747C Extended Travel 2.5 Series Vehicle-Specific Remote Reservoir CDCV Coilovers.

These coilovers combine ICON's Extended Travel design with external reservoirs and adjustable compression damping.

Key features include:

• 2.5-inch shock bodies

• Extended Travel design

• External remote reservoirs

• 10-position CDCV adjustment

• Tool-free compression damping adjustment

• Increased front droop travel

• Increased shock oil capacity

• Improved heat dissipation

• More consistent damping during demanding use

• Vehicle-specific shock tuning

• Adjustable 0-3.5" front lift

• Corrosion-resistant CAD-plated shock bodies

• Heavy-duty 7/8-inch shock shafts

• 6061 aircraft-grade aluminum CNC-machined components

• FK Rod End bearings

• Fully serviceable construction

ICON Tubular Upper Control Arms

The K53067T Stage 7 system includes ICON 58451DJ tubular steel upper control arms.

These heavy-duty UCAs are designed specifically to complement ICON's Extended Travel front coilovers while providing the additional articulation and alignment geometry required at increased ride heights.

Benefits include:

• Heavy-duty tubular steel construction

• Increased strength and durability

• Improved front suspension geometry

• Increased joint articulation

• Increased caster over stock

• Helps retain proper alignment at increased ride height

• ICON patented Delta Joint

ICON Delta Joint

The tubular upper control arms feature ICON's patented Delta Joint.

The Delta Joint combines the durability and weather protection of a heavy-duty ball joint with the increased angularity and performance characteristics of a traditional uniball.

Delta Joint features include:

• Heavy-duty high-angle design

• Greater angularity than a typical ball joint

• Metal-on-metal construction

• Greaseable design

• Zinc-plated housing for corrosion resistance

• Protective grease seal

• Helps keep dirt, water and contaminants away from internal components

• Designed for quiet operation

• Excellent for daily-driven and off-road vehicles

Tubular Rear Lower Links

The K53067T includes ICON 54000T tubular steel rear lower links.

These links replace the factory rear lower links with substantially stronger components designed for lifted and off-road Toyota applications.

Benefits include:

• Heavy-duty tubular steel construction

• Increased strength compared with OE rear links

• Improved rear suspension geometry

• Adjustable rear pinion angle

• Low-maintenance multi-durometer bushings

• Increased durability for off-road use

Tubular Rear Upper Links

The system also includes ICON 54100T tubular steel rear upper links.

These work with the tubular lower links to provide more complete control over rear axle geometry.

Benefits include:

• Heavy-duty tubular steel construction

• Increased strength compared with OE upper links

• Improved rear suspension geometry

• Works with the lower links to optimize pinion angle

• Low-maintenance multi-durometer bushings

• Increased durability for demanding off-road use

Adjustable Rear Track Bar

K53067T includes the ICON 54200 Adjustable Rear Track Bar.

Lifting a solid-axle vehicle can shift the rear axle laterally because the factory track bar has a fixed length.

The adjustable ICON track bar allows the rear axle to be properly centered beneath the vehicle after lifting.

Benefits include:

• Adjustable rear axle placement

• Helps center the axle after lifting

• Improved rear suspension geometry

• Improved articulation

• Ensures proper fitment on KDSS-equipped 4Runners

Complete Rear Suspension Geometry Control

With:

• Tubular rear lower links

• Tubular rear upper links

• Adjustable rear track bar

Stage 7 provides comprehensive control over rear suspension setup.

This allows the installer to fine-tune:

• Rear pinion angle

• Rear axle placement

• Rear suspension geometry

• Articulation

• Rear handling characteristics

2" Rear Lift Coil Springs

The K53067T includes ICON 52700 2-inch rear lift coil springs.

These springs provide approximately 2 inches of rear lift over stock, helping create a level front-to-rear stance while maintaining on-road comfort and improving off-road suspension performance.

2.5 Aluminum Series CDCV Remote Reservoir Rear Shocks

The K53067T Stage 7 system includes ICON 57810CP 2.5 Aluminum Series Vehicle-Specific Remote Reservoir CDCV rear shocks.

Rear shock features include:

• 2.5-inch aluminum shock bodies

• External remote reservoirs

• 10-position CDCV compression adjustment

• Tool-free damping adjustment

• Increased shock oil volume

• Improved heat dissipation

• More consistent damping during prolonged use

• Vehicle-specific shock tuning

• Designed for 1-3 inches of rear lift

• Fully serviceable construction

Remote Reservoir Shocks Front & Rear

Stage 7 uses 2.5 Series Remote Reservoir shocks at all four corners.

External reservoirs increase shock oil capacity and improve heat management during sustained off-road use.

Benefits include:

• Increased shock oil capacity

• Improved cooling

• Reduced shock fade

• More consistent damping

• Better performance during prolonged off-road driving

• Improved control over repeated impacts

• Excellent performance on washboard roads and rough terrain

Combined with 10-position CDCV adjustment, this gives the driver a much wider usable tuning range than lower ICON stages.

Remote Reservoir Clearance Note

ICON notes that the remote reservoir mounting brackets may interfere with certain aftermarket bumper mounts or windshield washer bottles.

Vehicles equipped with aftermarket bumpers, relocated washer reservoirs or other modifications in the reservoir mounting area should be checked for clearance before installation.

Wheel & Tire Recommendations

ICON confirms that OEM wheels and tires are compatible with the K53067T suspension system.

For aftermarket wheel and tire combinations, ICON recommends:

17" Wheels

• 17x8.5"

• 4.75" backspacing

• 0mm offset

18" Wheels

• 18x9"

• 5.00" backspacing

• 0mm offset

20" Wheels

• 20x9"

• 5.00" backspacing

• 0mm offset

Recommended Aftermarket Tire Size:
33" x 11.50"

Larger tires may fit, but fender trimming and modifications will be required.

Expedition Coil Option for Heavier Vehicles

ICON offers an optional 700 lb/in Expedition Coil for heavier-equipped vehicles.

This can be beneficial for 4Runners and FJ Cruisers carrying substantial permanent front-end weight from accessories such as:

• Steel bumpers

• Winches

• Skid plates

• Recovery equipment

• Other permanently installed accessories

Fully Serviceable ICON Shocks

The ICON shocks included with K53067T are fully serviceable.

Unlike disposable replacement shocks, ICON shocks can be serviced and rebuilt as components wear, helping extend the usable life of the suspension system.

Bolt-On Installation

The ICON K53067T Stage 7 Suspension System is designed as a bolt-on suspension upgrade.

No cutting or welding is required.

A professional wheel alignment should be performed after installation and final front ride-height adjustment.

Because Stage 7 includes adjustable rear upper and lower links plus an adjustable rear track bar, the rear pinion angle and axle position should also be properly set during installation.

System Components

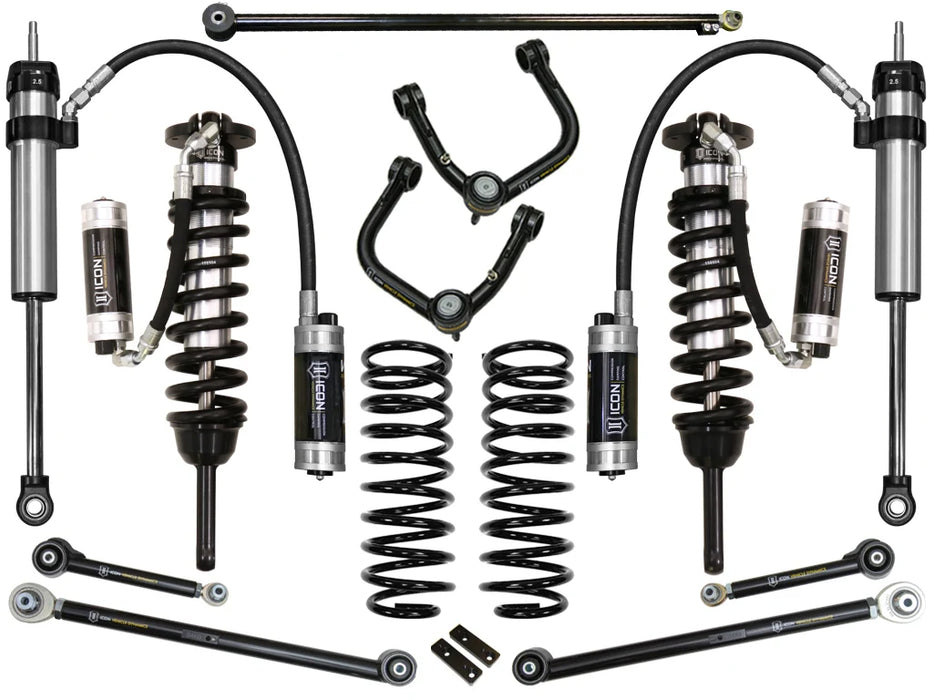

The ICON K53067T Stage 7 Suspension System includes:

Front Extended Travel CDCV Remote Reservoir Coilovers

• ICON 58747C

• Quantity: 1 kit / pair

• 2.5 Series Vehicle-Specific Remote Reservoir Coilovers

• Extended Travel

• 10-position Compression Damping Control Valve

• Adjustable 0-3.5" front lift

Tubular Upper Control Arms

• ICON 58451DJ

• Quantity: 1 kit

• Heavy-duty tubular steel construction

• ICON Delta Joint

Tubular Rear Lower Links

• ICON 54000T

• Quantity: 1 kit

• Heavy-duty tubular steel construction

• Adjustable rear pinion angle

Tubular Rear Upper Links

• ICON 54100T

• Quantity: 1 kit

• Heavy-duty tubular steel construction

• Additional rear suspension adjustment

Adjustable Rear Track Bar

• ICON 54200

• Quantity: 1

• Adjustable rear axle positioning

Rear Coil Springs

• ICON 52700

• Quantity: 1 kit / pair

• 2" rear lift coil springs

Rear CDCV Remote Reservoir Shocks

• ICON 57810CP

• Quantity: 1 pair

• 2.5 Aluminum Series

• Remote reservoir

• 10-position Compression Damping Control Valve

• Vehicle-specific tuning

• Designed for 1-3" rear lift

Product Specifications

Manufacturer: ICON Vehicle Dynamics
Part Number: K53067T
Product: Stage 7 Suspension System
Toyota 4Runner Fitment: 2010-2024
Toyota FJ Cruiser Fitment: 2010-2014
Front Shock Series: ICON 2.5 Series Extended Travel
Front Shock Type: Remote Reservoir CDCV Coilover
Front Compression Adjustment: 10-Position CDCV
Front Lift Range: 0-3.5"
Upper Control Arms: ICON Tubular Steel
UCA Joint: ICON Delta Joint
Rear Lower Links: ICON Tubular Steel
Rear Upper Links: ICON Tubular Steel
Rear Track Bar: Adjustable
Rear Link Adjustment: Adjustable Pinion Angle
Rear Coil Spring Lift: 2"
Rear Shock Series: ICON 2.5 Aluminum Series
Rear Shock Type: Remote Reservoir CDCV
Rear Compression Adjustment: 10-Position CDCV
Rear Shock Lift Range: 1-3"
Front Coilover Component: 58747C
Upper Control Arm Component: 58451DJ
Rear Lower Link Component: 54000T
Rear Upper Link Component: 54100T
Rear Track Bar Component: 54200
Rear Coil Spring Component: 52700
Rear Shock Component: 57810CP
KDSS Compatible: Yes
OEM Wheel & Tire Compatible: Yes
Recommended Tire Size: 33" x 11.50"
Installation: Bolt-On
Cutting/Welding Required: No
Shocks Serviceable: Yes
Shipping Weight: 187 lbs.
UPC: 840103417066

Frequently Asked Questions

What vehicles does ICON K53067T fit?
ICON lists K53067T for the 2010-2024 Toyota 4Runner and 2010-2014 Toyota FJ Cruiser.

How much lift does ICON K53067T provide?
The front coilovers provide 0-3.5 inches of adjustable lift, while the included rear springs provide approximately 2 inches of rear lift.

What is the difference between ICON K53066T Stage 6 and K53067T Stage 7?
Stage 7 upgrades the front and rear shocks with ICON Compression Damping Control Valves, providing 10 levels of tool-free compression damping adjustment.

What is the difference between K53067 and K53067T?
K53067 uses billet aluminum upper control arms and billet rear links, while K53067T uses tubular steel upper control arms and tubular rear upper and lower links. Both use the same CDCV-adjustable front and rear shock technology.

What is ICON CDCV?
CDCV stands for Compression Damping Control Valve. ICON's externally adjustable valve provides 10 levels of compression damping force.

Does K53067T have adjustable shocks front and rear?
Yes. Both the 58747C front coilovers and 57810CP rear shocks feature 10-position CDCV adjustment.

Does K53067T have remote reservoir shocks front and rear?
Yes. The system uses 2.5 Series Remote Reservoir shocks at all four corners.

Which upper control arms are included?
K53067T includes ICON 58451DJ tubular steel upper control arms with Delta Joint.

Does K53067T include adjustable rear upper and lower links?
Yes. It includes 54000T tubular rear lower links and 54100T tubular rear upper links.

What does the adjustable rear track bar do?
The ICON 54200 adjustable rear track bar allows the rear axle to be properly centered beneath the vehicle after lifting.

Can the rear pinion angle be adjusted?
Yes. The tubular rear links allow the rear pinion angle to be properly adjusted for the lifted suspension.

Does K53067T fit KDSS-equipped vehicles?
Yes. The system is KDSS compatible, and the required 54200 Adjustable Rear Track Bar is already included.

Are there special KDSS installation notes?
Yes. Front sway bar relocation brackets are not used on KDSS-equipped vehicles, and certain model years require trimming for front reservoir bracket fitment.

Can the reservoir brackets interfere with aftermarket parts?
Yes. ICON notes that remote reservoir mounting brackets may interfere with certain aftermarket bumper mounts or windshield washer bottles.

What size tires does ICON recommend?
ICON recommends 33" x 11.50" aftermarket tires with its specified wheel dimensions. Larger tires require fender trimming and modifications.

Can I use factory wheels and tires?
Yes. ICON confirms that OEM wheels and tires are compatible.

Is a heavier front spring available?
Yes. ICON offers an optional 700 lb/in Expedition Coil for heavier-equipped vehicles.

Are the ICON shocks rebuildable?
Yes. ICON states that the shocks included with K53067T are fully serviceable.

Does installation require cutting or welding?
No. K53067T is a bolt-on suspension system with no cutting or welding required.
