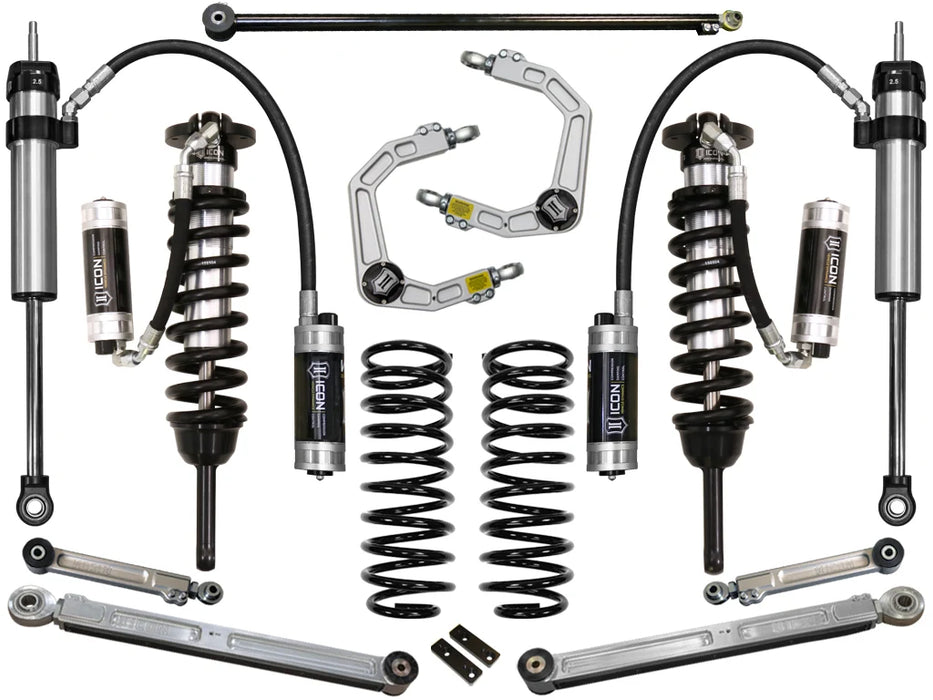

ICON Stage 7 Suspension System with Billet Links & CDCV – 2010-2024 4Runner & 2010-2014 FJ Cruiser | K53067

Take your Toyota's suspension performance and adjustability to the highest level with the ICON Vehicle Dynamics Stage 7 Suspension System, part #K53067.

Designed for the 2010-2024 Toyota 4Runner and 2010-2014 Toyota FJ Cruiser, the ICON Stage 7 system combines Extended Travel 2.5 Series Remote Reservoir front coilovers with CDCV, billet aluminum upper control arms with ICON Delta Joint, billet aluminum rear lower links, billet aluminum rear upper links, an adjustable rear track bar, 2-inch rear lift coil springs, and 2.5 Aluminum Series Remote Reservoir rear shocks with CDCV.

The defining feature of Stage 7 is ICON's Compression Damping Control Valve (CDCV) technology. Both the front coilovers and rear shocks provide 10 levels of compression damping adjustment, allowing you to quickly tune the suspension for changing terrain, vehicle load and driving style without tools.

The result is a premium suspension system that combines adjustable shock damping, increased wheel travel, improved suspension geometry, rear axle positioning and serious off-road capability while maintaining excellent on-road ride quality.

Vehicle Fitment

Toyota 4Runner

• 2010-2024

Toyota FJ Cruiser

• 2010-2014

IMPORTANT: ICON lists the complete K53067 Stage 7 system specifically for 2010-2024 Toyota 4Runner and 2010-2014 Toyota FJ Cruiser applications.

KDSS Compatibility

The K53067 is compatible with KDSS-equipped vehicles.

Because Stage 7 includes the ICON 54200 Adjustable Rear Track Bar, the system already incorporates the rear axle alignment component required for KDSS applications.

ICON notes:

• Front sway bar relocation brackets are not used on KDSS-equipped vehicles

• Certain model years require trimming for proper front reservoir bracket fitment

Features

• Complete ICON Stage 7 Suspension System

• Fits 2010-2024 Toyota 4Runner

• Fits 2010-2014 Toyota FJ Cruiser

• Adjustable 0-3.5" front lift

• ICON Extended Travel 2.5 Series Remote Reservoir front coilovers

• Front coilovers feature CDCV compression damping adjustment

• 10 levels of front compression damping adjustment

• Tool-free shock adjustment

• Increased front droop and wheel travel

• ICON billet aluminum upper control arms

• ICON patented Delta Joint

• Improved front suspension and alignment geometry

• On-vehicle caster and camber adjustment

• ICON billet aluminum rear lower links

• ICON billet aluminum rear upper links

• Adjustable rear track bar included

• On-vehicle rear pinion-angle adjustment

• Proper rear axle placement after lifting

• Increased rear suspension articulation

• Reduced rear suspension deflection

• 2" rear lift coil springs

• ICON 2.5 Aluminum Series Remote Reservoir rear shocks

• Rear shocks feature CDCV compression damping adjustment

• 10 levels of rear compression damping adjustment

• Remote reservoir shocks front and rear

• Increased shock oil capacity

• Improved heat dissipation

• More consistent damping during demanding use

• Vehicle-specific front and rear shock tuning

• Increased wheel travel and ride quality over stock

• Heavy-duty 7/8" front shock shafts

• 6061 aircraft-grade CNC-machined aluminum components

• Corrosion-resistant CAD-plated coilover shock bodies

• FK Rod End bearings for increased longevity and minimal deflection

• Fully serviceable shocks

• Bolt-on installation

• No cutting or welding required

• ICON Vehicle Dynamics part number K53067

What Does Stage 7 Add Over Stage 6?

The major upgrade from ICON K53066 Stage 6 to K53067 Stage 7 is adjustable compression damping.

Stage 6 already includes:

• Extended Travel Remote Reservoir front coilovers

• Billet Delta Joint upper control arms

• Billet rear lower links

• Billet rear upper links

• Adjustable rear track bar

• 2" rear coil springs

• 2.5 Remote Reservoir rear shocks

Stage 7 upgrades the shocks to:

• ICON 58747C Extended Travel Remote Reservoir CDCV front coilovers

• ICON 57810CP Remote Reservoir CDCV rear shocks

• 10 levels of compression damping adjustment front and rear

• Tool-free adjustment

This allows the suspension to be quickly tuned for:

• Daily street driving

• Trail driving

• Rock crawling

• High-speed dirt roads

• Washboard roads

• Overlanding

• Added cargo

• Heavier vehicle configurations

• Changing terrain

• Personal ride preference

ICON CDCV – Compression Damping Control Valve

ICON's Compression Damping Control Valve is an externally adjustable valve built into the remote reservoir.

The valve restricts oil flow into the reservoir to provide 10 distinct levels of compression damping force.

Increasing the setting creates firmer compression damping for more aggressive driving or heavier vehicle loads.

Reducing the setting allows a softer, more compliant suspension response for slower-speed trail use and rough terrain.

Because K53067 includes CDCV at both the front and rear, you can tune the entire suspension system rather than only one end of the vehicle.

Adjustable 0-3.5" Front Lift

The ICON Stage 7 front coilovers provide 0 to 3.5 inches of adjustable front lift.

This allows you to set front ride height based on your desired stance, tire size and vehicle configuration.

Unlike a basic spacer lift, ICON's coilovers replace the factory shock and spring assemblies with performance suspension components engineered to improve:

• Ride quality

• Shock damping

• Suspension travel

• Vehicle control

• Off-road performance

• Front ride height

Front Lift Range: 0-3.5"

ICON notes that published coilover heights are based on a stock-equipped vehicle. Added weight from bumpers, winches, skid plates and other accessories can affect actual ride height.

Extended Travel 2.5 CDCV Remote Reservoir Front Coilovers

K53067 uses ICON 58747C Extended Travel 2.5 Series Vehicle-Specific Remote Reservoir CDCV Coilovers.

These coilovers combine ICON's Extended Travel design with external reservoirs and adjustable compression damping.

Key features include:

• 2.5-inch shock bodies

• Extended Travel design

• External remote reservoirs

• 10-position CDCV adjustment

• Tool-free compression damping adjustment

• Increased front droop travel

• Increased shock oil capacity

• Improved heat dissipation

• More consistent damping during demanding use

• Vehicle-specific shock tuning

• Adjustable 0-3.5" front lift

• Corrosion-resistant CAD-plated shock bodies

• Heavy-duty 7/8-inch shock shafts

• 6061 aircraft-grade aluminum CNC-machined components

• FK Rod End bearings

• Fully serviceable construction

ICON Billet Upper Control Arms

The K53067 Stage 7 system includes ICON 58551DJ billet aluminum upper control arms.

These premium UCAs are CNC machined from 6061 aircraft-grade aluminum and designed specifically to complement ICON's Extended Travel front coilovers.

Benefits include:

• CNC-machined 6061 billet aluminum construction

• Increased strength and durability

• Improved front suspension geometry

• Increased joint articulation

• On-vehicle caster and camber adjustment

• Helps retain factory alignment specifications

• Allows proper wheel alignment at increased ride height

• ICON patented Delta Joint

ICON Delta Joint

The billet upper control arms feature ICON's patented Delta Joint.

The Delta Joint combines the durability and weather protection of a heavy-duty ball joint with the increased angularity and performance characteristics of a traditional uniball.

Delta Joint features include:

• Heavy-duty high-angle design

• Greater angularity than a typical ball joint

• Metal-on-metal construction

• Greaseable design

• Zinc-plated housing for corrosion resistance

• Protective grease seal

• Helps keep dirt, water and contaminants away from internal components

• Designed for quiet operation

• Excellent for daily-driven and off-road vehicles

Billet Rear Lower Links

The K53067 includes ICON 54000 billet aluminum rear lower links.

These links replace the factory lower links with stronger CNC-machined components while providing additional suspension adjustment.

Benefits include:

• CNC-machined 6061 billet aluminum construction

• Anodized for corrosion resistance

• Increased strength compared with factory links

• PTFE-lined FK rod ends

• Greaseable polyurethane bushings

• Increased suspension articulation

• Reduced suspension deflection

• ICON Double Adjuster system

• On-vehicle link-length adjustment

• On-vehicle rear pinion-angle adjustment

Billet Rear Upper Links

The system also includes ICON 54100 billet aluminum rear upper links.

These work with the lower links to provide more complete control over rear suspension geometry.

Benefits include:

• CNC-machined billet aluminum construction

• Increased strength compared with OE upper links

• Improved rear suspension geometry

• Additional rear axle adjustment

• Works with the lower links to optimize pinion angle

• Increased suspension articulation

• Reduced deflection

Adjustable Rear Track Bar

K53067 includes the ICON 54200 Adjustable Rear Track Bar.

Lifting a solid-axle vehicle can shift the rear axle laterally because the factory track bar has a fixed length.

The adjustable ICON track bar allows the rear axle to be properly centered beneath the vehicle after lifting.

Benefits include:

• Adjustable rear axle placement

• Helps center the axle after lifting

• Improved rear suspension geometry

• Improved articulation

• Ensures proper fitment on KDSS-equipped 4Runners

Complete Rear Suspension Geometry Control

With:

• Billet rear lower links

• Billet rear upper links

• Adjustable rear track bar

Stage 7 provides comprehensive control over rear suspension setup.

This allows the installer to fine-tune:

• Rear pinion angle

• Rear axle placement

• Rear suspension geometry

• Articulation

• Rear handling characteristics

2" Rear Lift Coil Springs

The K53067 includes ICON 52700 2-inch rear lift coil springs.

These springs provide approximately 2 inches of rear lift over stock, helping create a level front-to-rear stance while maintaining on-road comfort and improving off-road suspension performance.

2.5 Aluminum Series CDCV Remote Reservoir Rear Shocks

The K53067 Stage 7 system includes ICON 57810CP 2.5 Aluminum Series Vehicle-Specific Remote Reservoir CDCV rear shocks.

Rear shock features include:

• 2.5-inch aluminum shock bodies

• External remote reservoirs

• 10-position CDCV compression adjustment

• Tool-free damping adjustment

• Increased shock oil volume

• Improved heat dissipation

• More consistent damping during prolonged use

• Vehicle-specific shock tuning

• Designed for 1-3 inches of rear lift

• Fully serviceable construction

Remote Reservoir Shocks Front & Rear

Stage 7 uses 2.5 Series Remote Reservoir shocks at all four corners.

External reservoirs increase shock oil capacity and improve heat management during sustained off-road use.

Benefits include:

• Increased shock oil capacity

• Improved cooling

• Reduced shock fade

• More consistent damping

• Better performance during prolonged off-road driving

• Improved control over repeated impacts

• Excellent performance on washboard roads and rough terrain

Combined with the CDCV adjustment, this gives the driver a much wider usable tuning range than lower ICON stages.

Remote Reservoir Clearance Note

ICON notes that the remote reservoir mounting brackets may interfere with certain aftermarket bumper mounts or windshield washer bottles.

Vehicles equipped with aftermarket bumpers, relocated washer reservoirs or other modifications in the reservoir mounting area should be checked for clearance before installation.

Wheel & Tire Recommendations

ICON confirms that OEM wheels and tires are compatible with the K53067 suspension system.

For aftermarket wheel and tire combinations, ICON recommends:

17" Wheels

• 17x8.5"

• 4.75" backspacing

• 0mm offset

18" Wheels

• 18x9"

• 5.00" backspacing

• 0mm offset

20" Wheels

• 20x9"

• 5.00" backspacing

• 0mm offset

Recommended Aftermarket Tire Size:
33" x 11.50"

Larger tires may fit, but fender trimming and modifications will be required.

Expedition Coil Option for Heavier Vehicles

ICON offers an optional 700 lb/in Expedition Coil for heavier-equipped vehicles.

This can be beneficial for 4Runners and FJ Cruisers carrying substantial permanent front-end weight from accessories such as:

• Steel bumpers

• Winches

• Skid plates

• Recovery equipment

• Other permanently installed accessories

Fully Serviceable ICON Shocks

The ICON shocks included with K53067 are fully serviceable.

Unlike disposable replacement shocks, ICON shocks can be serviced and rebuilt as components wear, helping extend the usable life of the suspension system.

Bolt-On Installation

The ICON K53067 Stage 7 Suspension System is designed as a bolt-on suspension upgrade.

No cutting or welding is required.

A professional wheel alignment should be performed after installation and final front ride-height adjustment.

Because Stage 7 includes adjustable rear upper and lower links plus an adjustable rear track bar, the rear pinion angle and axle position should also be properly set during installation.

System Components

The ICON K53067 Stage 7 Suspension System includes:

Front Extended Travel CDCV Remote Reservoir Coilovers

• ICON 58747C

• Quantity: 1 kit / pair

• 2.5 Series Vehicle-Specific Remote Reservoir Coilovers

• Extended Travel

• 10-position Compression Damping Control Valve

• Adjustable 0-3.5" front lift

Billet Upper Control Arms

• ICON 58551DJ

• Quantity: 1 kit

• CNC-machined billet aluminum

• ICON Delta Joint

• On-vehicle caster/camber adjustment

Billet Rear Lower Links

• ICON 54000

• Quantity: 1 kit

• CNC-machined 6061 billet aluminum

• On-vehicle link-length and pinion-angle adjustment

Billet Rear Upper Links

• ICON 54100

• Quantity: 1 kit

• CNC-machined billet aluminum

• Increased rear suspension adjustment

Adjustable Rear Track Bar

• ICON 54200

• Quantity: 1

• Adjustable rear axle positioning

Rear Coil Springs

• ICON 52700

• Quantity: 1 kit / pair

• 2" rear lift coil springs

Rear CDCV Remote Reservoir Shocks

• ICON 57810CP

• Quantity: 1 pair

• 2.5 Aluminum Series

• Remote reservoir

• 10-position Compression Damping Control Valve

• Vehicle-specific tuning

• Designed for 1-3" rear lift

Product Specifications

Manufacturer: ICON Vehicle Dynamics
Part Number: K53067
Product: Stage 7 Suspension System
Toyota 4Runner Fitment: 2010-2024
Toyota FJ Cruiser Fitment: 2010-2014
Front Shock Series: ICON 2.5 Series Extended Travel
Front Shock Type: Remote Reservoir CDCV Coilover
Front Compression Adjustment: 10-Position CDCV
Front Lift Range: 0-3.5"
Upper Control Arms: ICON Billet Aluminum
UCA Joint: ICON Delta Joint
UCA Adjustment: On-Vehicle Caster/Camber
Rear Lower Links: ICON Billet Aluminum
Rear Upper Links: ICON Billet Aluminum
Rear Track Bar: Adjustable
Rear Link Adjustment: On-Vehicle Pinion Angle
Rear Coil Spring Lift: 2"
Rear Shock Series: ICON 2.5 Aluminum Series
Rear Shock Type: Remote Reservoir CDCV
Rear Compression Adjustment: 10-Position CDCV
Rear Shock Lift Range: 1-3"
Front Coilover Component: 58747C
Upper Control Arm Component: 58551DJ
Rear Lower Link Component: 54000
Rear Upper Link Component: 54100
Rear Track Bar Component: 54200
Rear Coil Spring Component: 52700
Rear Shock Component: 57810CP
KDSS Compatible: Yes
OEM Wheel & Tire Compatible: Yes
Recommended Tire Size: 33" x 11.50"
Installation: Bolt-On
Cutting/Welding Required: No
Shocks Serviceable: Yes
Shipping Weight: 175 lbs.
UPC: 840103417059

Frequently Asked Questions

What vehicles does ICON K53067 fit?
ICON lists K53067 for the 2010-2024 Toyota 4Runner and 2010-2014 Toyota FJ Cruiser.

How much lift does ICON K53067 provide?
The front coilovers provide 0-3.5 inches of adjustable lift, while the included rear springs provide approximately 2 inches of rear lift.

What is the difference between ICON K53066 Stage 6 and K53067 Stage 7?
Stage 7 upgrades the front and rear shocks with ICON Compression Damping Control Valves, providing 10 levels of tool-free compression damping adjustment.

What is ICON CDCV?
CDCV stands for Compression Damping Control Valve. ICON's externally adjustable valve provides 10 levels of compression damping force.

Does K53067 have adjustable shocks front and rear?
Yes. Both the 58747C front coilovers and 57810CP rear shocks feature 10-position CDCV adjustment.

Does K53067 have remote reservoir shocks front and rear?
Yes. The system uses 2.5 Series Remote Reservoir shocks at all four corners.

Which upper control arms are included?
K53067 includes ICON 58551DJ billet aluminum upper control arms with Delta Joint.

Does K53067 include adjustable rear upper and lower links?
Yes. It includes 54000 billet rear lower links and 54100 billet rear upper links.

What does the adjustable rear track bar do?
The ICON 54200 adjustable rear track bar allows the rear axle to be properly centered beneath the vehicle after lifting.

Can the rear pinion angle be adjusted?
Yes. The billet rear links allow the rear pinion angle to be properly adjusted for the lifted suspension.

Does K53067 fit KDSS-equipped vehicles?
Yes. The system is KDSS compatible, and the required 54200 Adjustable Rear Track Bar is already included.

Are there special KDSS installation notes?
Yes. Front sway bar relocation brackets are not used on KDSS-equipped vehicles, and certain model years require trimming for front reservoir bracket fitment.

Can the reservoir brackets interfere with aftermarket parts?
Yes. ICON notes that remote reservoir mounting brackets may interfere with certain aftermarket bumper mounts or windshield washer bottles.

What size tires does ICON recommend?
ICON recommends 33" x 11.50" aftermarket tires with its specified wheel dimensions. Larger tires require fender trimming and modifications.

Can I use factory wheels and tires?
Yes. ICON confirms that OEM wheels and tires are compatible.

Is a heavier front spring available?
Yes. ICON offers an optional 700 lb/in Expedition Coil for heavier-equipped vehicles.

Are the ICON shocks rebuildable?
Yes. ICON states that the shocks included with K53067 are fully serviceable.

Does installation require cutting or welding?
No. K53067 is a bolt-on suspension system with no cutting or welding required.
