ICON Stage 6 Suspension System with Tubular Links & Remote Reservoir Shocks – 2003-2009 4Runner & 2007-2009 FJ Cruiser | K53056T

Upgrade your Toyota with the ICON Vehicle Dynamics Stage 6 Suspension System with Tubular Suspension Links, part #K53056T.

Designed specifically for the 2003-2009 Toyota 4Runner and 2007-2009 Toyota FJ Cruiser, the ICON Stage 6 system combines Extended Travel 2.5 Series Remote Reservoir front coilovers, tubular steel upper control arms with ICON Delta Joint, 2-inch rear lift coil springs, tubular steel rear lower links, tubular steel rear upper links, an adjustable rear track bar, and 2.5 Aluminum Series Remote Reservoir rear shocks with Bump Zone technology.

Compared with the ICON K53055T Stage 5 system, Stage 6 adds the tubular rear upper link kit and adjustable rear track bar, giving you much more complete control over rear suspension geometry, pinion angle and rear axle placement.

The result is one of ICON's most comprehensive tubular-link suspension systems for the early 4Runner and FJ Cruiser platform, designed to improve wheel travel, ride quality, suspension articulation, handling, axle positioning and off-road performance.

Vehicle Fitment

Toyota 4Runner

• 2003

• 2004

• 2005

• 2006

• 2007

• 2008

• 2009

Toyota FJ Cruiser

• 2007

• 2008

• 2009

IMPORTANT: ICON lists the complete K53056T Stage 6 system specifically for 2003-2009 Toyota 4Runner and 2007-2009 Toyota FJ Cruiser applications.

Individual components included in the system fit additional Toyota and Lexus applications, but that does not extend the fitment of the complete K53056T suspension system.

Features

• Complete ICON Stage 6 Suspension System

• Fits 2003-2009 Toyota 4Runner

• Fits 2007-2009 Toyota FJ Cruiser

• Adjustable 0-3.5" front lift

• ICON Extended Travel 2.5 Series Remote Reservoir front coilovers

• Increased front droop and wheel travel

• Increased front shock oil volume and enhanced cooling

• ICON tubular steel upper control arms

• ICON patented Delta Joint

• ICON tubular steel rear lower links

• ICON tubular steel rear upper links

• Adjustable rear track bar

• Rear links provide pinion angle adjustment

• Adjustable track bar helps properly center the rear axle

• Improved rear suspension geometry

• 2" rear lift coil springs

• ICON 2.5 Aluminum Series Remote Reservoir rear shocks

• Rear shocks feature ICON Bump Zone technology

• Remote reservoir shocks front and rear

• Improved heat management during prolonged off-road use

• Increased resistance to shock fade

• Vehicle-specific front and rear shock tuning

• Increased wheel travel and ride quality over stock

• Improved on-road and off-road handling

• 6061 aircraft-grade CNC-machined shock components

• Corrosion-resistant CAD-plated coilover shock bodies

• Heavy-duty 7/8" front shock shafts

• Heavy-duty 7/8" rear shock shafts

• FK Rod End bearings for extended longevity and minimal deflection

• Fully serviceable shocks

• Bolt-on installation

• No cutting or welding required

• ICON Vehicle Dynamics part number K53056T

What Does Stage 6 Add Over Stage 5?

The major upgrade from K53055T Stage 5 to K53056T Stage 6 is the additional rear suspension adjustability.

Stage 5 already includes:

• Extended Travel Remote Reservoir front coilovers

• Tubular Delta Joint upper control arms

• Tubular rear lower links

• 2" rear coil springs

• 2.5 Remote Reservoir rear shocks with Bump Zone

Stage 6 adds:

• ICON 54100T Tubular Rear Upper Links

• ICON 54200 Adjustable Rear Track Bar

These additions provide much more complete control over the geometry and position of the rear axle after the vehicle has been lifted.

Adjustable 0-3.5" Front Lift

The ICON Stage 6 front coilovers provide 0 to 3.5 inches of adjustable front lift on a stock-equipped vehicle.

This allows you to tune the front ride height based on your desired stance, tire size and vehicle configuration.

Unlike a basic spacer lift, the ICON system replaces the factory front shock and spring assemblies with performance coilovers designed to improve:

• Ride quality

• Shock damping

• Suspension travel

• Vehicle control

• Off-road performance

• Front ride height

Front Lift Range: 0-3.5"

ICON notes that published coilover lift heights are based on a stock-equipped vehicle. Added weight from bumpers, winches, skid plates and other accessories can affect actual ride height.

Extended Travel 2.5 Remote Reservoir Front Coilovers

K53056T uses ICON 58745 Extended Travel 2.5 Series Remote Reservoir Coilovers.

These coilovers provide increased front suspension droop and wheel travel, while the external reservoirs increase shock oil volume and improve heat management during prolonged suspension cycling.

Key features include:

• 2.5-inch shock body

• Extended Travel design

• External remote reservoirs

• Increased shock oil volume

• Enhanced cooling

• Improved resistance to shock fade

• Vehicle-specific shock tuning

• Adjustable 0-3.5" front lift

• Increased front droop travel

• Corrosion-resistant CAD-plated shock body

• Heavy-duty 7/8-inch shock shaft

• 6061 aircraft-grade aluminum CNC-machined components

• FK Rod End bearings

• Fully serviceable construction

ICON Tubular Upper Control Arms

The K53056T includes ICON 58451DJ tubular steel upper control arms.

These heavy-duty UCAs are designed to complement the Extended Travel front coilovers and provide the articulation required when increasing front suspension travel and ride height.

The tubular control arms provide a strong and durable alternative to ICON's billet UCA design while retaining the performance benefits of the ICON Delta Joint.

ICON Delta Joint

The tubular upper control arms use ICON's patented Delta Joint.

The Delta Joint combines the durability of a heavy-duty ball joint with increased angularity similar to a traditional uniball.

Features include:

• Heavy-duty high-angle design

• Greater angularity than a typical ball joint

• Metal-on-metal construction

• Greaseable design

• Zinc-plated housing for corrosion resistance

• Protective grease seal

• Helps keep dirt, water and contaminants away from internal components

• Designed for quiet operation

• Excellent for daily-driven and off-road vehicles

Tubular Rear Lower Links

The K53056T includes ICON 54000T tubular steel rear lower links.

These links replace the factory rear lower arms with substantially stronger components designed for lifted and off-road applications.

Benefits include:

• Heavy-duty tubular steel construction

• Increased strength compared with OE rear links

• Adjustable rear pinion angle

• Improved rear suspension geometry

• Correct roll-steer geometry

• Low-maintenance multi-durometer bushings

• Improved on-road and off-road handling

Tubular Rear Upper Links

Stage 6 adds ICON 54100T tubular steel rear upper links.

These links work with the tubular rear lower links to provide additional control over rear suspension geometry.

Benefits include:

• Heavy-duty tubular steel construction

• Increased strength compared with factory upper links

• Additional rear suspension adjustment

• Works with lower links to optimize pinion angle

• Improved rear axle geometry

• Designed for demanding street and off-road use

With both upper and lower rear links upgraded, Stage 6 provides far more complete control over rear suspension geometry than lower ICON stages.

Adjustable Rear Track Bar

Stage 6 also includes the ICON 54200 Adjustable Rear Track Bar.

Lifting a solid-axle vehicle can cause the rear axle to shift laterally because of the fixed length of the factory track bar.

The adjustable ICON track bar allows the rear axle to be properly centered underneath the vehicle after the suspension height is changed.

Benefits include:

• Adjustable rear axle placement

• Helps center the axle after lifting

• Improved rear suspension geometry

• Heavy-duty construction

• Integrates with the ICON upper and lower links as a complete rear suspension system

Complete Rear Suspension Adjustment

The combination of:

• Tubular rear lower links

• Tubular rear upper links

• Adjustable rear track bar

gives the K53056T Stage 6 system much greater control over rear suspension setup.

This allows the installer to fine-tune:

• Rear pinion angle

• Rear axle placement

• Rear suspension geometry

• Rear handling characteristics

For owners looking for a complete suspension system rather than simply additional ride height, Stage 6 provides a significant advantage.

2" Rear Lift Coil Springs

The K53056T includes ICON 52700 2-inch rear lift coil springs.

These springs complement the adjustable front suspension while providing additional rear ride height and maintaining balanced front-to-rear suspension performance.

2.5 Aluminum Series Remote Reservoir Rear Shocks

Stage 6 uses ICON 57810P 2.5 Aluminum Series Remote Reservoir rear shocks.

Features include:

• 2.5-inch aluminum shock body

• External remote reservoirs

• Increased shock oil volume

• Enhanced cooling

• Improved resistance to shock fade

• Vehicle-specific tuning

• Heavy-duty 7/8-inch shock shafts

• Designed for 1-3 inches of rear lift

• ICON Bump Zone technology

• Fully serviceable construction

ICON Bump Zone Technology

The rear shocks included with K53056T feature ICON's Bump Zone technology.

Bump Zone significantly increases damping during the final 2 inches of compression travel.

As the rear suspension approaches full compression, the additional damping helps slow axle movement before the suspension reaches the end of its travel.

This helps:

• Reduce harsh bottom-out

• Improve suspension control

• Absorb larger impacts

• Maintain better vehicle composure

• Provide a more controlled ride over varying terrain

Remote Reservoir Shocks Front & Rear

Stage 6 uses 2.5 Series Remote Reservoir shocks at both the front and rear.

The increased oil volume and enhanced cooling help the shocks maintain consistent damping during prolonged suspension cycling.

This makes the system particularly well suited for:

• Aggressive trail driving

• High-speed off-road use

• Washboard roads

• Overlanding

• Extended backcountry travel

• Heavily modified vehicles

• Repeated rough-terrain driving

System Components

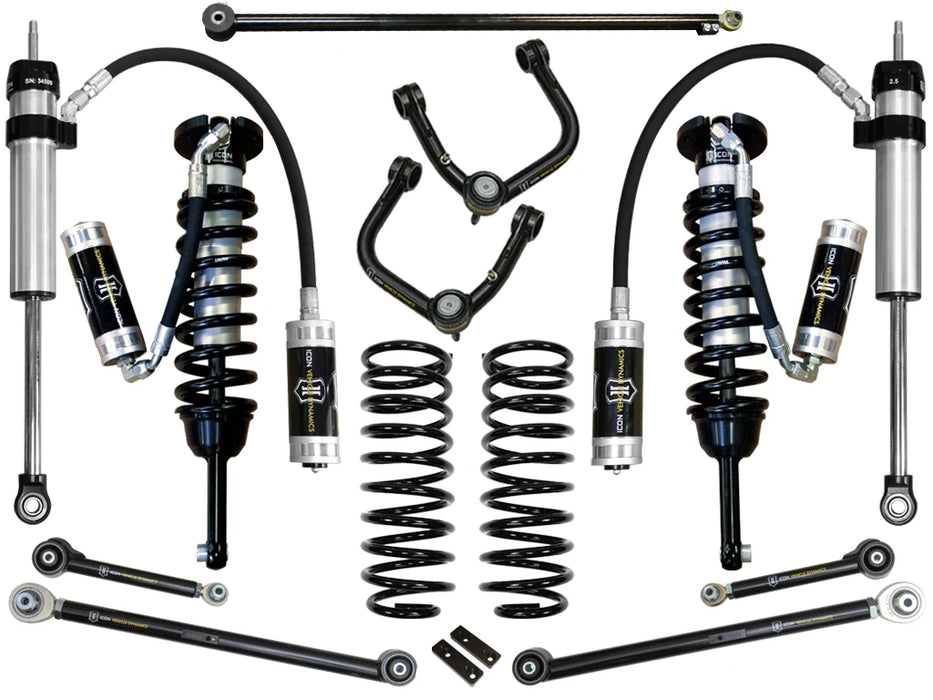

The ICON K53056T Stage 6 Suspension System includes:

Front Extended Travel Remote Reservoir Coilovers

• ICON 58745

• Quantity: 1 kit / pair

• 2.5 Series Vehicle-Specific Remote Reservoir Coilovers

• Extended Travel

• Adjustable 0-3.5" front lift

Tubular Upper Control Arms

• ICON 58451DJ

• Quantity: 1 kit

• Tubular steel construction

• ICON Delta Joint

Tubular Rear Lower Links

• ICON 54000T

• Quantity: 1 kit

• Heavy-duty tubular steel construction

• Adjustable pinion angle

• Multi-durometer bushings

Tubular Rear Upper Links

• ICON 54100T

• Quantity: 1 kit

• Heavy-duty tubular steel construction

• Additional rear suspension adjustment

Adjustable Rear Track Bar

• ICON 54200

• Quantity: 1

• Adjustable rear axle positioning

Rear Coil Springs

• ICON 52700

• Quantity: 1 kit / pair

• 2" rear lift coil springs

Rear Remote Reservoir Shocks

• ICON 57810P

• Quantity: 1 pair

• 2.5 Aluminum Series

• Remote reservoir

• Vehicle-specific tuning

• Bump Zone technology

• Designed for 1-3" rear lift

Wheel & Tire Recommendations

ICON confirms that OEM wheels and tires are compatible with the K53056T suspension system.

For aftermarket wheel and tire combinations, ICON recommends:

17" Wheels

• 17x8.5"

• 4.75" backspacing

• 0mm offset

18" Wheels

• 18x9"

• 5.00" backspacing

• 0mm offset

20" Wheels

• 20x9"

• 5.00" backspacing

• 0mm offset

Recommended Aftermarket Tire Size:
33" x 11.50"

ICON notes that larger tires may fit, but fender trimming and modifications will be required.

Actual tire clearance can vary based on wheel width, offset, backspacing, suspension height and vehicle configuration.

Important Remote Reservoir Clearance Note

ICON notes that the remote reservoir mounting brackets may interfere with some aftermarket bumper mounts or windshield washer bottles.

If your vehicle has an aftermarket bumper, relocated washer reservoir or other modifications in the reservoir mounting area, verify clearance before installation.

Expedition Coil Option for Heavier Vehicles

ICON identifies an optional 700 lb/in Expedition Coil for heavier-equipped vehicles.

This may be useful for FJ Cruisers and 4Runners carrying substantial permanent front-end weight from accessories such as:

• Steel bumpers

• Winches

• Skid plates

• Recovery equipment

• Other permanently installed accessories

Fully Serviceable ICON Shocks

The ICON shocks included with K53056T are fully serviceable.

Unlike disposable replacement shocks, ICON shocks can be serviced and rebuilt as components wear, helping extend the usable life of the suspension system.

Bolt-On Installation

The ICON K53056T Stage 6 Suspension System is designed as a bolt-on suspension upgrade.

No cutting or welding is required.

A professional wheel alignment should be performed after installation and final front ride-height adjustment.

Because Stage 6 includes adjustable rear upper and lower links plus an adjustable rear track bar, the rear pinion angle and axle position should also be properly set during installation.

Product Specifications

Manufacturer: ICON Vehicle Dynamics
Part Number: K53056T
Product: Stage 6 Suspension System
Toyota 4Runner Fitment: 2003-2009
Toyota FJ Cruiser Fitment: 2007-2009
Front Shock Series: ICON 2.5 Series Extended Travel
Front Shock Type: Remote Reservoir Coilover
Front Lift Range: 0-3.5"
Upper Control Arms: ICON Tubular Steel
UCA Joint: ICON Delta Joint
Rear Lower Links: ICON Tubular Steel
Rear Upper Links: ICON Tubular Steel
Rear Track Bar: Adjustable
Rear Link Adjustment: Adjustable Pinion Angle
Rear Coil Spring Lift: 2"
Rear Shock Series: ICON 2.5 Aluminum Series
Rear Shock Type: Remote Reservoir
Rear Shock Technology: ICON Bump Zone
Rear Shock Lift Range: 1-3"
Front Shock Shaft: 7/8"
Rear Shock Shaft: 7/8"
Front Coilover Component: 58745
Upper Control Arm Component: 58451DJ
Rear Lower Link Component: 54000T
Rear Upper Link Component: 54100T
Rear Track Bar Component: 54200
Rear Coil Spring Component: 52700
Rear Shock Component: 57810P
OEM Wheel & Tire Compatible: Yes
Recommended Tire Size: 33" x 11.50"
Installation: Bolt-On
Cutting Required: No
Welding Required: No
Shocks Serviceable: Yes
Shipping Weight: Approximately 184 lbs.
UPC: 840103416892

Frequently Asked Questions

What vehicles does ICON K53056T fit?
ICON lists K53056T for the 2003-2009 Toyota 4Runner and 2007-2009 Toyota FJ Cruiser.

How much lift does ICON K53056T provide?
The front Extended Travel coilovers provide 0-3.5 inches of adjustable lift, while the included rear coil springs provide approximately 2 inches of rear lift.

What is the difference between ICON K53055T Stage 5 and K53056T Stage 6?
Stage 6 adds tubular rear upper links and an adjustable rear track bar to the Stage 5 package, providing more complete control over rear suspension geometry and axle position.

What is the difference between K53056 and K53056T?
K53056T uses tubular steel upper control arms, tubular rear lower links and tubular rear upper links, while K53056 uses ICON's billet versions of those link components.

Does K53056T include adjustable rear upper and lower links?
Yes. K53056T includes ICON 54000T tubular lower links and 54100T tubular upper links.

What does the adjustable rear track bar do?
The ICON 54200 adjustable rear track bar allows the rear axle to be properly centered beneath the vehicle after the suspension has been lifted.

Can the rear pinion angle be adjusted?
Yes. The upgraded rear links allow the rear pinion angle to be properly tuned for the lifted suspension.

Does K53056T have remote reservoir shocks front and rear?
Yes. The system uses 2.5 Series Extended Travel Remote Reservoir coilovers in front and 2.5 Aluminum Series Remote Reservoir shocks in the rear.

What upper control arms are included?
K53056T includes ICON 58451DJ tubular steel upper control arms with Delta Joint.

What is ICON Bump Zone technology?
Bump Zone increases rear shock damping during the final 2 inches of compression travel, helping reduce harsh bottom-out and improve suspension control.

Does K53056T fit a 2010-2014 FJ Cruiser?
No. ICON lists the complete K53056T Stage 6 system specifically for the 2007-2009 FJ Cruiser.

Does K53056T fit the Lexus GX?
Several individual components included in the system have Lexus GX applications, but ICON does not list the complete K53056T Stage 6 system for the GX. Follow ICON's complete-system fitment.

What size tires does ICON recommend?
ICON recommends 33" x 11.50" aftermarket tires with its specified wheel dimensions. Larger tires require additional clearance modifications.

Can I use factory wheels and tires?
Yes. ICON specifically lists OEM wheels and tires as compatible.

Can the remote reservoir brackets interfere with aftermarket parts?
Yes. ICON notes that remote reservoir mounting brackets may interfere with certain aftermarket bumper mounts or windshield washer bottles.

Are the ICON shocks rebuildable?
Yes. ICON states that the shocks included with K53056T are fully serviceable.

Does installation require cutting or welding?
No. ICON designed K53056T as a bolt-on suspension system with no cutting or welding required.
