ICON Stage 5 Suspension System with Billet UCA & Remote Reservoir Shocks – 2010-2024 4Runner & 2010-2014 FJ Cruiser | K53065

Upgrade your Toyota with the ICON Vehicle Dynamics Stage 5 Suspension System, part #K53065, a premium suspension package designed for increased wheel travel, improved ride quality, enhanced vehicle control and demanding off-road performance.

Designed for the 2010-2024 Toyota 4Runner and 2010-2014 Toyota FJ Cruiser, the ICON Stage 5 system combines Extended Travel 2.5 Series Remote Reservoir front coilovers, billet aluminum upper control arms with ICON Delta Joint, billet aluminum adjustable rear lower links, 2-inch rear lift coil springs, and 2.5 Aluminum Series Remote Reservoir rear shocks with Bump Zone technology.

The front coilovers provide 0-3.5 inches of adjustable front lift and increased droop travel. Unlike the internal-reservoir coilovers used in Stage 4, Stage 5 upgrades to remote reservoir front coilovers, increasing shock oil volume and helping maintain cooler operating temperatures during demanding use.

Combined with remote reservoir rear shocks, Stage 5 provides 2.5 Series Remote Reservoir shock technology at all four corners, making K53065 an excellent choice for serious trail use, overlanding, high-speed off-road driving and vehicles that regularly encounter rough terrain.

Vehicle Fitment

Toyota 4Runner

• 2010-2024

Toyota FJ Cruiser

• 2010-2014

IMPORTANT: ICON lists the complete K53065 Stage 5 system specifically for 2010-2024 Toyota 4Runner and 2010-2014 Toyota FJ Cruiser applications.

Important KDSS Fitment Note

KDSS-equipped vehicles require ICON rear track bar #54200.

The K53065 system is compatible with KDSS. ICON notes that the front sway bar relocation brackets are not used on KDSS-equipped vehicles, and certain model years may require trimming for proper front reservoir bracket fitment.

ICON also recommends an adjustable rear track bar on non-KDSS vehicles to help properly realign the rear axle after lifting, although it is not required.

Features

• Complete ICON Stage 5 Suspension System

• Fits 2010-2024 Toyota 4Runner

• Fits 2010-2014 Toyota FJ Cruiser

• Adjustable 0-3.5" front lift

• ICON Extended Travel 2.5 Series Remote Reservoir front coilovers

• Increased front droop and wheel travel

• Remote reservoirs increase front shock oil capacity

• Improved front shock cooling during demanding use

• ICON billet aluminum upper control arms

• ICON patented Delta Joint

• Improved front suspension and alignment geometry

• On-vehicle caster and camber adjustment

• ICON billet aluminum adjustable rear lower links

• On-vehicle rear pinion-angle adjustment

• Increased rear suspension articulation

• Reduced rear suspension deflection

• 2" rear lift coil springs

• ICON 2.5 Aluminum Series Remote Reservoir rear shocks

• ICON Bump Zone technology

• Remote reservoir shocks front and rear

• Improved shock cooling during prolonged use

• More consistent damping under demanding conditions

• Vehicle-specific front and rear shock tuning

• Increased wheel travel and ride quality over stock

• Heavy-duty 7/8" front and rear shock shafts

• 6061 aircraft-grade CNC-machined aluminum components

• Corrosion-resistant CAD-plated coilover shock bodies

• FK Rod End bearings for increased longevity and minimal deflection

• Fully serviceable shocks

• Bolt-on installation

• No cutting or welding required

• ICON Vehicle Dynamics part number K53065

What Does Stage 5 Add Over Stage 4?

The primary upgrade from ICON K53064 Stage 4 to K53065 Stage 5 is the front coilover package.

Stage 4 already includes:

• Extended Travel 2.5 Series front coilovers

• Billet aluminum Delta Joint upper control arms

• Billet aluminum adjustable rear lower links

• 2" rear lift coil springs

• 2.5 Aluminum Series Remote Reservoir rear shocks with Bump Zone

Stage 5 upgrades the front coilovers to:

• ICON 58747 2.5 Series Extended Travel Remote Reservoir coilovers

• External front shock reservoirs

• Increased shock oil volume

• Improved heat dissipation

• More consistent damping during prolonged use

• Increased front droop travel

• Heavy-duty 7/8-inch shock shafts

The result is a suspension system with remote reservoir shocks at all four corners.

For vehicles subjected to extended off-road driving, repeated high-speed impacts, washboard roads and other demanding conditions, the increased oil volume and improved cooling can help reduce shock fade and maintain more consistent suspension performance.

Adjustable 0-3.5" Front Lift

The ICON Stage 5 front coilovers provide 0 to 3.5 inches of adjustable front lift.

This allows you to set front ride height based on your desired stance, tire size and vehicle configuration.

Unlike a basic spacer lift, ICON's coilovers replace the factory shock and spring assemblies with performance suspension components engineered to improve:

• Ride quality

• Shock damping

• Suspension travel

• Vehicle control

• Off-road performance

• Front ride height

Front Lift Range: 0-3.5"

ICON notes that published coilover heights are based on a stock-equipped vehicle. Added weight from aftermarket bumpers, winches, skid plates and other accessories can affect actual ride height.

Extended Travel 2.5 Remote Reservoir Front Coilovers

K53065 uses ICON 58747 Extended Travel 2.5 Series Vehicle-Specific Remote Reservoir Coilovers.

These coilovers combine ICON's Extended Travel design with external reservoirs to provide increased front suspension travel and improved heat management.

Key features include:

• 2.5-inch shock bodies

• Extended Travel design

• External remote reservoirs

• Increased front droop travel

• Increased shock oil capacity

• Improved heat dissipation

• More consistent damping during demanding use

• Vehicle-specific shock tuning

• Adjustable 0-3.5" front lift

• Corrosion-resistant CAD-plated shock bodies

• Heavy-duty 7/8-inch shock shafts

• 6061 aircraft-grade aluminum CNC-machined components

• FK Rod End bearings

• Fully serviceable construction

ICON Billet Upper Control Arms

The K53065 Stage 5 system includes ICON 58551DJ billet aluminum upper control arms.

These premium UCAs are CNC machined from 6061 aircraft-grade aluminum and designed specifically to complement ICON's Extended Travel front coilovers.

Benefits include:

• CNC-machined 6061 billet aluminum construction

• Increased strength and durability

• Improved front suspension geometry

• Increased joint articulation

• On-vehicle caster and camber adjustment

• Helps retain factory alignment specifications

• Allows proper wheel alignment at increased ride height

• ICON patented Delta Joint

ICON Delta Joint

The billet upper control arms feature ICON's patented Delta Joint.

The Delta Joint is a heavy-duty high-angle ball joint designed to combine the durability and weather protection of a conventional ball joint with the increased angularity and performance characteristics of a traditional uniball.

Delta Joint features include:

• Heavy-duty high-angle design

• Greater angularity than a typical ball joint

• Metal-on-metal construction

• Greaseable design

• Zinc-plated housing for corrosion resistance

• Protective grease seal

• Helps keep dirt, water and contaminants away from internal components

• Designed for quiet operation

• Excellent for daily-driven and off-road vehicles

ICON Billet Rear Lower Links

The K53065 Stage 5 system includes ICON 54000 billet aluminum adjustable rear lower links.

These links are CNC machined from 6061 aluminum and anodized for corrosion resistance.

They replace the factory rear lower links while providing additional strength, articulation and suspension adjustment.

Key benefits include:

• CNC-machined 6061 billet aluminum construction

• Anodized for corrosion resistance

• Increased strength compared with factory links

• PTFE-lined FK rod ends

• Greaseable polyurethane bushings

• Increased suspension articulation

• Reduced suspension deflection

• ICON Double Adjuster system

• On-vehicle link-length adjustment

• On-vehicle rear pinion-angle adjustment

Adjustable Rear Pinion Angle

Lifting a vehicle changes the relationship between the rear axle and driveshaft.

The ICON billet rear lower links allow the installer to adjust link length and optimize the rear pinion angle after the suspension has been lifted.

ICON's Double Adjuster system allows adjustments to be performed on the vehicle, simplifying suspension setup and fine-tuning.

2" Rear Lift Coil Springs

The K53065 includes ICON 52700 2-inch rear lift coil springs.

These springs provide approximately 2 inches of rear lift over stock, helping create a level front-to-rear stance while maintaining on-road comfort and improving off-road suspension performance.

2.5 Aluminum Series Remote Reservoir Rear Shocks

The K53065 Stage 5 system includes ICON 57810P 2.5 Aluminum Series Vehicle-Specific Remote Reservoir rear shocks.

Rear shock features include:

• 2.5-inch aluminum shock bodies

• External remote reservoirs

• Heavy-duty 7/8-inch shock shafts

• Increased shock oil volume

• Improved heat dissipation

• More consistent damping during prolonged use

• Vehicle-specific shock tuning

• Designed for 1-3 inches of rear lift

• ICON Bump Zone technology

• Fully serviceable construction

ICON Bump Zone Technology

The Stage 5 rear shocks feature ICON's internal Bump Zone technology.

Bump Zone creates an additional 20% of damping force to help better control hard bottom-outs.

This additional damping helps:

• Better control hard bottom-outs

• Reduce harsh suspension impacts

• Improve vehicle control

• Manage larger off-road impacts

• Maintain a smoother and more controlled ride

This allows the shock to remain compliant during normal suspension movement while providing additional control as the suspension approaches a hard bottom-out condition.

Remote Reservoir Shocks Front & Rear

One of the defining characteristics of K53065 Stage 5 is the use of 2.5 Series Remote Reservoir shocks at all four corners.

External reservoirs increase the total volume of shock oil and help maintain cooler operating temperatures during heavy suspension use.

Benefits include:

• Increased shock oil capacity

• Improved heat management

• Reduced shock fade

• More consistent damping

• Better performance during prolonged off-road driving

• Improved control over repeated impacts

• Excellent performance on washboard roads and rough terrain

This makes Stage 5 especially well suited for vehicles used for:

• Serious trail driving

• Overlanding

• High-speed off-road driving

• Extended backcountry travel

• Washboard roads

• Repeated rough-terrain use

KDSS Compatibility

The K53065 is compatible with KDSS-equipped applications, but ICON specifically states:

KDSS-equipped vehicles require ICON rear track bar #54200.

ICON also notes:

• Front sway bar relocation brackets are not used on KDSS-equipped vehicles

• Certain model years may require trimming for front reservoir bracket fitment

Customers with KDSS-equipped vehicles should take these requirements into consideration before installation.

Adjustable Rear Track Bar Recommendation

Even on non-KDSS vehicles, ICON recommends an adjustable rear track bar to help realign the rear axle after lifting, although it is not required.

Because the factory track bar has a fixed length, increasing rear ride height can shift the solid rear axle laterally.

An adjustable track bar allows the axle to be properly repositioned beneath the vehicle.

Recommended Track Bar: ICON #54200

Remote Reservoir Clearance Note

ICON notes that the remote reservoir mounting brackets may interfere with certain aftermarket bumper mounts or windshield washer bottles.

Vehicles equipped with aftermarket bumpers, relocated washer reservoirs or other modifications in the reservoir mounting area should be checked for clearance before installation.

Wheel & Tire Recommendations

ICON confirms that OEM wheels and tires are compatible with the K53065 suspension system.

For aftermarket wheel and tire combinations, ICON recommends:

17" Wheels

• 17x8.5"

• 4.75" backspacing

• 0mm offset

18" Wheels

• 18x9"

• 5.00" backspacing

• 0mm offset

20" Wheels

• 20x9"

• 5.00" backspacing

• 0mm offset

Recommended Aftermarket Tire Size:
33" x 11.50"

ICON notes that larger tires may fit, but fender trimming and modifications will be required.

Actual tire clearance can vary based on wheel width, offset, backspacing, suspension height and vehicle configuration.

Expedition Coil Option for Heavier Vehicles

ICON offers an optional 700 lb/in Expedition Coil for heavier-equipped vehicles.

This may be beneficial for 4Runners and FJ Cruisers carrying substantial permanent front-end weight from accessories such as:

• Steel bumpers

• Winches

• Skid plates

• Recovery equipment

• Other permanently installed accessories

Fully Serviceable ICON Shocks

The ICON shocks included with K53065 are fully serviceable.

Unlike disposable replacement shocks, ICON shocks can be serviced and rebuilt as components wear, helping extend the usable life of the suspension system.

Bolt-On Installation

The ICON K53065 Stage 5 Suspension System is designed as a bolt-on suspension upgrade.

No cutting or welding is required for installation.

A professional wheel alignment should be performed after installation and final front ride-height adjustment.

Because the system includes adjustable rear lower links, the rear pinion angle should also be checked and properly adjusted during installation.

System Components

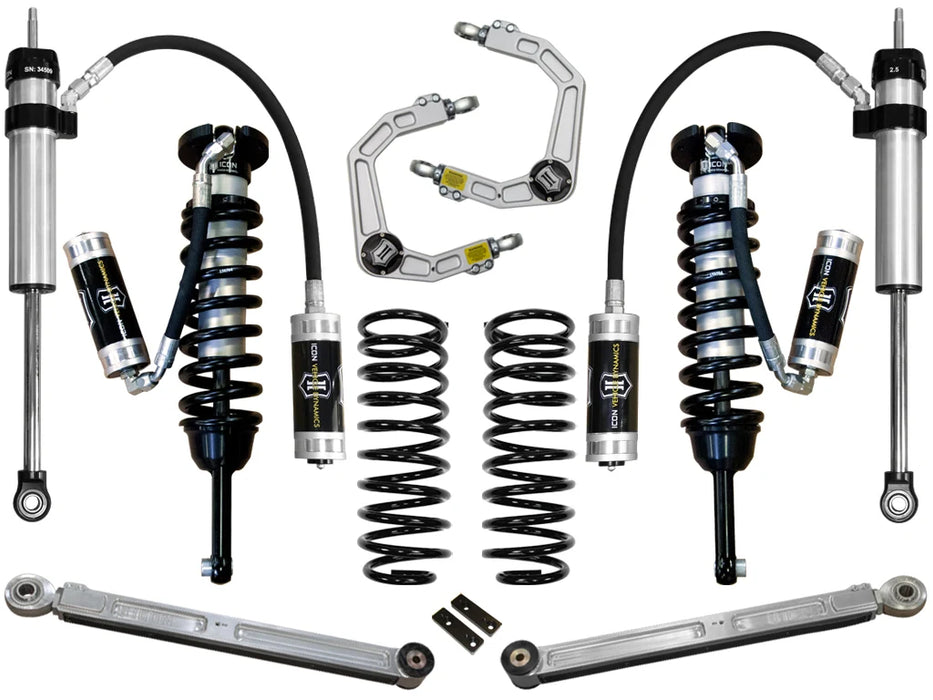

The ICON K53065 Stage 5 Suspension System includes:

Front Extended Travel Remote Reservoir Coilovers

• ICON 58747

• Quantity: 1 kit / pair

• 2.5 Series Vehicle-Specific Remote Reservoir Coilovers

• Extended Travel

• Adjustable 0-3.5" front lift

Billet Upper Control Arms

• ICON 58551DJ

• Quantity: 1 kit

• CNC-machined billet aluminum

• ICON Delta Joint

• On-vehicle caster/camber adjustment

Billet Rear Lower Links

• ICON 54000

• Quantity: 1 kit

• CNC-machined 6061 billet aluminum

• PTFE-lined FK rod ends

• Greaseable polyurethane bushings

• ICON Double Adjuster system

• On-vehicle link-length adjustment

• Rear pinion-angle adjustment

Rear Coil Springs

• ICON 52700

• Quantity: 1 kit / pair

• 2" rear lift coil springs

Rear Remote Reservoir Shocks

• ICON 57810P

• Quantity: 1 pair

• 2.5 Aluminum Series

• Remote reservoir

• Vehicle-specific tuning

• Bump Zone technology

• Designed for 1-3" rear lift

Product Specifications

Manufacturer: ICON Vehicle Dynamics
Part Number: K53065
Product: Stage 5 Suspension System
Toyota 4Runner Fitment: 2010-2024
Toyota FJ Cruiser Fitment: 2010-2014
Front Shock Series: ICON 2.5 Series Extended Travel
Front Shock Type: Remote Reservoir Coilover
Front Lift Range: 0-3.5"
Upper Control Arms: ICON Billet Aluminum
UCA Joint: ICON Delta Joint
UCA Adjustment: On-Vehicle Caster/Camber
Rear Lower Links: ICON Billet Aluminum
Rear Link Adjustment: On-Vehicle Link Length / Pinion Angle
Rear Coil Spring Lift: 2"
Rear Shock Series: ICON 2.5 Aluminum Series
Rear Shock Type: Remote Reservoir
Rear Shock Lift Range: 1-3"
Rear Shock Technology: ICON Bump Zone
Front Shock Shaft: 7/8"
Rear Shock Shaft: 7/8"
Front Coilover Component: 58747
Upper Control Arm Component: 58551DJ
Rear Lower Link Component: 54000
Rear Coil Spring Component: 52700
Rear Shock Component: 57810P
KDSS Compatible: Yes
KDSS Requirement: ICON 54200 Rear Track Bar
OEM Wheel & Tire Compatible: Yes
Recommended Tire Size: 33" x 11.50"
Installation: Bolt-On
Cutting/Welding Required: No
Shocks Serviceable: Yes
Shipping Weight: 151 lbs.
UPC: 840103417011

Frequently Asked Questions

What vehicles does ICON K53065 fit?
ICON lists K53065 for the 2010-2024 Toyota 4Runner and 2010-2014 Toyota FJ Cruiser.

How much lift does ICON K53065 provide?
The front coilovers provide 0-3.5 inches of adjustable lift, while the included rear springs provide approximately 2 inches of rear lift.

What is the difference between ICON K53064 Stage 4 and K53065 Stage 5?
Stage 5 upgrades the front suspension to ICON 58747 Extended Travel 2.5 Series Remote Reservoir coilovers. Stage 4 uses internal-reservoir front coilovers. Both systems use 2.5 Remote Reservoir rear shocks.

Does K53065 have remote reservoir shocks front and rear?
Yes. Stage 5 uses 2.5 Series Remote Reservoir shocks at all four corners.

What front coilovers are included?
K53065 includes ICON 58747 Extended Travel 2.5 Series Vehicle-Specific Remote Reservoir coilovers.

What rear shocks are included?
K53065 includes ICON 57810P 2.5 Aluminum Series Remote Reservoir rear shocks with Bump Zone technology.

What is ICON Bump Zone technology?
ICON's Bump Zone provides an additional 20% of damping force to help better control hard bottom-outs.

Which upper control arms are included?
K53065 includes ICON 58551DJ billet aluminum upper control arms with Delta Joint.

What rear lower links are included?
K53065 includes ICON 54000 billet aluminum adjustable rear lower links.

Can the rear pinion angle be adjusted?
Yes. The ICON billet rear lower links provide on-vehicle pinion-angle adjustment using ICON's Double Adjuster system.

Does K53065 fit KDSS-equipped vehicles?
Yes. ICON states that the system is KDSS compatible, but KDSS-equipped vehicles require ICON rear track bar #54200.

Are there any special KDSS installation notes?
Yes. ICON states that the front sway bar relocation brackets are not used on KDSS-equipped vehicles, and certain model years require trimming for front reservoir bracket fitment.

Can the reservoir brackets interfere with aftermarket parts?
Yes. ICON notes that the remote reservoir mounting brackets may interfere with some aftermarket bumper mounts or windshield washer bottles.

What size tires does ICON recommend?
ICON recommends 33" x 11.50" aftermarket tires with its specified wheel dimensions. Larger tires may fit but require fender trimming and modifications.

Can I use factory wheels and tires?
Yes. ICON confirms that OEM wheels and tires are compatible.

Is a heavier front spring available?
Yes. ICON offers an optional 700 lb/in Expedition Coil for heavier-equipped vehicles.

Are the ICON shocks rebuildable?
Yes. ICON states that the shocks included with K53065 are fully serviceable.

Does installation require cutting or welding?
No. ICON describes K53065 as a bolt-on system with no cutting or welding required.
