ICON Stage 5 Suspension System with Billet UCA & Rear Links – 2021-2026 Ford Bronco Sasquatch | K40015

Upgrade your Bronco with the ICON Vehicle Dynamics Stage 5 Suspension System, part #K40015, a premium suspension package engineered for increased wheel travel, improved ride quality, enhanced rear articulation and sustained off-road performance.

Designed specifically for the 2021-2026 Ford Bronco equipped with the Sasquatch Package, the ICON Stage 5 system combines 2.5 Series Vehicle-Specific Remote Reservoir front coilovers, billet aluminum upper control arms with Delta Joint Pro, billet aluminum rear lower suspension links, and 2.5 Series Vehicle-Specific Remote Reservoir rear coilovers with ICON-engineered triple-rate rear springs.

The system provides approximately 2-3 inches of front lift and 1.25-2.25 inches of rear lift over stock 4-door Sasquatch-equipped Broncos.

Compared with Stage 4, Stage 5 adds ICON's billet aluminum rear lower links, which improve rear suspension articulation, increase strength and ground clearance, and provide on-vehicle link-length and pinion-angle adjustment.

With 35" tires, ICON engineered K40015 to provide up to 11.5 inches of front suspension travel and 14 inches of rear suspension travel.

Vehicle Fitment

Ford Bronco

• 2021-2026

• Sasquatch Package equipped vehicles

DOES NOT FIT:

• Ford Bronco Raptor

IMPORTANT: ICON's published lift heights and application notes for K40015 are based on Sasquatch-equipped Broncos.

Features

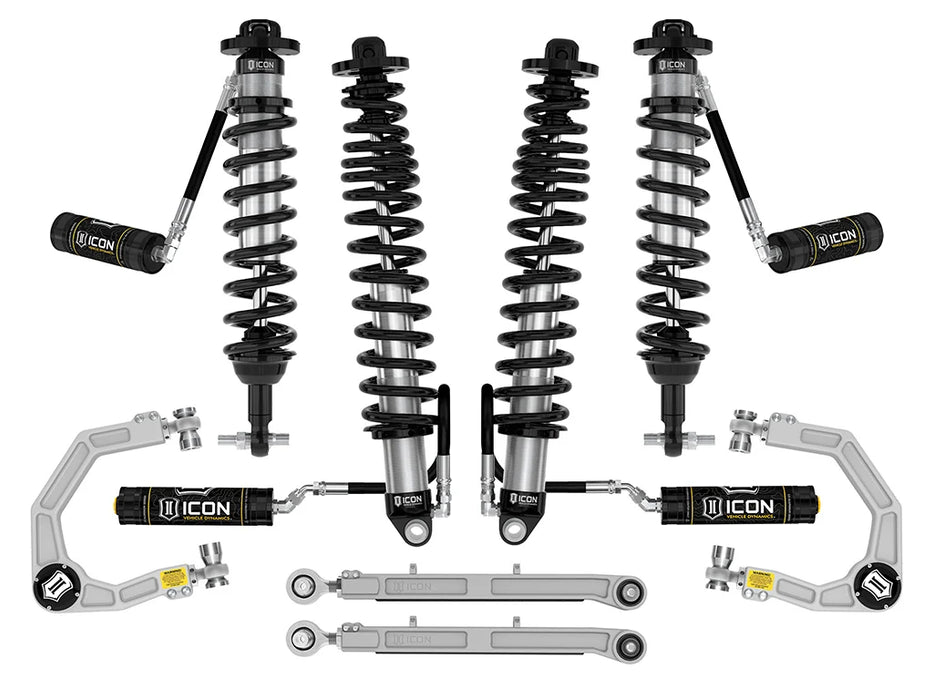

• Complete ICON Stage 5 Suspension System

• Fits 2021-2026 Ford Bronco with Sasquatch Package

• Adjustable 2-3" front lift

• Adjustable 1.25-2.25" rear lift

• Up to 11.5" front suspension travel

• Up to 14" rear suspension travel

• ICON 2.5 Series Vehicle-Specific Remote Reservoir front coilovers

• ICON 2.5 Series Vehicle-Specific Remote Reservoir rear coilovers

• Remote reservoirs increase shock oil volume

• Improved heat dissipation during sustained off-road use

• Improved resistance to shock fade

• ICON-engineered coil springs

• Unique triple-rate rear coil spring design

• ICON billet aluminum upper control arms

• ICON patented Delta Joint Pro

• 90 degrees of total UCA articulation

• On-vehicle caster and camber adjustment

• ICON billet aluminum rear lower links

• Improved rear suspension articulation

• Increased rear link strength

• Improved ground clearance compared with factory links

• On-vehicle rear link-length adjustment

• On-vehicle rear pinion-angle adjustment

• Replaceable rock skids on rear links

• Dual-durometer greaseless bushings

• Heavy-duty FK rod ends

• Vehicle-specific shock tuning

• Improved ride quality over stock

• Improved damping and vehicle control

• Corrosion-resistant CAD-plated coilover shock bodies

• Heavy-duty 7/8" shock shafts

• PTFE-lined spherical bearings

• CNC-machined 6061 aircraft-grade aluminum components

• High-strength alloy CNC-machined lower bar pins

• Fully serviceable shocks

• 100% bolt-on installation

• No drilling, cutting or welding required

• ICON Vehicle Dynamics part number K40015

What Does Stage 5 Add Over Stage 4?

The primary upgrade from ICON K40014 Stage 4 to K40015 Stage 5 is the addition of ICON billet aluminum rear lower suspension links.

Stage 4 already includes:

• 2.5 Series Remote Reservoir front coilovers

• Billet Delta Joint Pro upper control arms

• 2.5 Series Remote Reservoir rear coilovers

• Triple-rate rear springs

Stage 5 adds:

• ICON 44000 Billet Rear Lower Link Kit

• Increased rear suspension articulation

• Increased strength compared with factory rear links

• Improved ground clearance

• On-vehicle link-length adjustment

• On-vehicle pinion-angle adjustment

• Dual-durometer greaseless bushings

• Heavy-duty FK rod ends

• Replaceable rock skids

This makes Stage 5 especially appealing for Broncos that see more serious trail use, where rear articulation, suspension durability and driveline geometry become increasingly important.

Adjustable Ride Height

ICON lists the following lift range for a stock-weight 4-door Bronco with the Sasquatch Package:

Front Lift: 2-3"
Rear Lift: 1.25-2.25"

Actual ride height can vary depending on vehicle weight and configuration.

Added weight from:

• Steel bumpers

• Winches

• Skid plates

• Roof racks

• Cargo

• Recovery equipment

• Other permanently installed accessories

can reduce actual lift height.

2-Door vs. 4-Door Ride Height

ICON specifically notes:

2-door Bronco models will sit taller than 4-door models.

Customers should account for this when setting final coilover preload and ride height.

ICON 2.5 Remote Reservoir Front Coilovers

K40015 uses ICON 48700 2.5 Series Vehicle-Specific Remote Reservoir Front Coilovers.

Key features include:

• 2.5-inch shock bodies

• External remote reservoirs

• Increased shock oil volume

• Increased heat dissipation

• Vehicle-specific valving

• Adjustable ride height

• Increased front suspension travel

• Heavy-duty 7/8-inch shock shafts

• Corrosion-resistant CAD-plated shock bodies

• CNC-machined 6061 aircraft-grade aluminum components

• PTFE-lined spherical bearings

• Fully serviceable construction

The remote reservoir design helps maintain more consistent damping during prolonged hard use compared with internal-reservoir shocks.

ICON Billet Upper Control Arms

The K40015 Stage 5 system includes ICON 48500DJ billet aluminum upper control arms.

These premium UCAs are designed to accommodate the increased lift height and suspension travel provided by the ICON coilovers.

Benefits include:

• Premium billet aluminum construction

• Increased strength and durability

• Improved suspension geometry

• Increased suspension articulation

• On-vehicle caster adjustment

• On-vehicle camber adjustment

• Helps achieve optimum front-end alignment

• ICON Delta Joint Pro

ICON Delta Joint Pro

The billet upper control arms feature ICON's patented Delta Joint Pro.

ICON specifies:

90 Degrees of Total Articulation

This increased range of movement allows the front suspension to take advantage of the additional wheel travel available from the ICON coilovers.

ICON Billet Rear Lower Links

The defining Stage 5 upgrade is the ICON 44000 billet aluminum rear lower link kit.

These links replace the factory rear lower suspension links with premium billet components designed to improve strength, articulation and off-road durability.

Key benefits include:

• Billet aluminum construction

• Increased strength compared with OE rear links

• Improved rear suspension articulation

• Increased ground clearance

• Dual-durometer greaseless bushings at one end

• Heavy-duty FK rod ends at the opposite end

• On-vehicle link-length adjustment

• On-vehicle rear pinion-angle adjustment

• Replaceable rock skids

The combination of low-friction articulation and adjustable link length makes these links both a durability upgrade and a functional suspension geometry upgrade.

Adjustable Rear Pinion Angle

Lifting a vehicle changes the relationship between the rear axle and driveshaft.

ICON's billet rear lower links allow the installer to adjust link length directly on the vehicle, helping optimize the rear pinion angle for the lifted suspension.

This can improve driveline geometry while also allowing precise rear suspension setup.

Replaceable Rock Skids

The ICON billet rear links feature replaceable rock skids.

These help protect the billet links when they contact rocks and other trail obstacles.

Rather than damaging the main aluminum link body, the skid surface can take the abuse and be replaced as needed.

ICON 2.5 Remote Reservoir Rear Coilovers

The rear of K40015 uses ICON 48710 2.5 Series Vehicle-Specific Remote Reservoir Rear Coilovers.

Rear features include:

• 2.5-inch shock bodies

• External remote reservoirs

• Increased shock oil volume

• Improved heat dissipation

• Vehicle-specific valving

• Heavy-duty 7/8-inch shock shafts

• Shaft-up orientation

• Increased rear suspension travel

• Fully serviceable construction

Triple-Rate Rear Coil Springs

K40015 uses ICON's unique triple-rate rear coil spring design.

These springs are optimized for improved suspension performance and ride quality on a near-stock-weight Bronco.

The softer initial spring rates provide excellent suspension compliance, but ICON notes that additional rear weight can reduce the advertised rear lift height.

Customers carrying substantial permanent weight from:

• Rear bumpers

• Tire carriers

• Cargo systems

• Camping equipment

• Roof racks

• Recovery equipment

should account for this when evaluating final ride height.

Maximum Suspension Travel

With 35" x 12.50" tires, ICON lists:

Front Suspension Travel: Up to 11.5"
Rear Suspension Travel: Up to 14"

This increased travel helps maintain tire contact over uneven terrain while improving traction, ride quality and vehicle control.

35" Tire Fitment

ICON recommends:

35" x 12.50" tires

with the appropriate aftermarket wheel specifications.

37" Tire Fitment

ICON states that K40015 may safely be used with 37" and larger tires when the appropriate up-travel limiters are installed.

For 37" tires:

Front: ICON #611075 Up-Travel Limiters
Rear: ICON #611074 Up-Travel Limiters

Minor trimming may also be required depending on wheel and tire configuration.

Recommended Wheels

ICON recommends:

17" Wheels

• 17x8.5"

• 4.75" backspacing

• 0mm offset

18" Wheels

• 18x9"

• 5.00" backspacing

• 0mm offset

20" Wheels

• 20x9"

• 5.00" backspacing

• 0mm offset

Recommended Tire Size:
35" x 12.50"

OEM Wheel & Tire Compatibility

ICON specifies:

OEM Wheels & Tires Fitment: No

Customers should verify wheel and tire clearance before installation.

Bronco Everglades Fitment Note

ICON specifically states that the Bronco Everglades will have approximately 1.5-2.5 inches of front lift over stock.

This differs from the standard 2-3" range published for other Sasquatch-equipped Broncos.

Rear Reservoir Clearance Note

ICON notes that the rear reservoir brackets may interfere with some aftermarket steps or rock slider mounts.

Modifications may be required depending on the design of the installed steps or rock sliders.

Steering Component Compatibility

ICON performed fitment testing using ICON and OE steering components.

Because clearance between the steering components and front coilovers is tight, ICON warns that certain aftermarket steering components may not be compatible.

Customers using aftermarket:

• Tie rods

• Steering racks

• Steering braces

• Other steering modifications

should verify clearance before installation.

ADAS Recalibration Required

ICON specifies that installation of K40015 requires recalibration of the Bronco's Advanced Driver Assistance Systems (ADAS).

Changing vehicle ride height can affect cameras, sensors and driver-assistance system calibration.

ADAS recalibration should therefore be included as part of the installation process.

Fully Serviceable ICON Shocks

The ICON shocks included with K40015 are fully serviceable.

Unlike disposable replacement shocks, these coilovers can be serviced and rebuilt as components wear, helping extend the usable life of the suspension system.

Bolt-On Installation

K40015 is designed as a 100% bolt-on suspension system.

No drilling, cutting or welding is required for suspension installation.

A professional wheel alignment should be performed after installation and final ride-height adjustment.

Because Stage 5 adds adjustable rear lower links, the rear pinion angle should also be checked and properly adjusted during installation.

ADAS recalibration is required after installation.

System Components

The ICON K40015 Stage 5 Suspension System includes:

Front Remote Reservoir Coilovers

• ICON 48700

• Quantity: 1 kit

• 2.5 Series Vehicle-Specific

• Remote reservoir

• Adjustable 2-3" front lift

Billet Upper Control Arms

• ICON 48500DJ

• Quantity: 1 kit

• Billet aluminum construction

• ICON Delta Joint Pro

• 90 degrees total articulation

• On-vehicle caster and camber adjustment

Billet Rear Lower Links

• ICON 44000

• Quantity: 1 kit

• Billet aluminum construction

• Dual-durometer greaseless bushings

• Heavy-duty FK rod ends

• On-vehicle length adjustment

• Rear pinion-angle adjustment

• Replaceable rock skids

Rear Remote Reservoir Coilovers

• ICON 48710

• Quantity: 1 kit

• 2.5 Series Vehicle-Specific

• Remote reservoir

• Triple-rate rear coil springs

• Adjustable 1.25-2.25" rear lift

Product Specifications

Manufacturer: ICON Vehicle Dynamics
Part Number: K40015
Product: Stage 5 Suspension System
Vehicle: Ford Bronco
Model Years: 2021-2026
Required Package: Sasquatch
Bronco Raptor Compatible: No
Front Shock Series: ICON 2.5 Series Vehicle-Specific
Front Shock Type: Remote Reservoir Coilover
Front Lift Range: 2-3"
Rear Shock Series: ICON 2.5 Series Vehicle-Specific
Rear Shock Type: Remote Reservoir Coilover
Rear Lift Range: 1.25-2.25"
Maximum Front Suspension Travel: 11.5"
Maximum Rear Suspension Travel: 14"
Upper Control Arms: Billet Aluminum
UCA Part Number: 48500DJ
UCA Joint: Delta Joint Pro
UCA Articulation: 90 Degrees Total
UCA Adjustment: On-Vehicle Caster & Camber
Rear Lower Links: Billet Aluminum
Rear Lower Link Part Number: 44000
Rear Link Adjustment: On-Vehicle Length / Pinion Angle
Rear Link Protection: Replaceable Rock Skids
Rear Spring Design: Triple Rate
Shock Shaft Diameter: 7/8"
Front Coilover Component: 48700
Rear Coilover Component: 48710
OEM Wheel & Tire Fitment: No
Recommended Tire Size: 35" x 12.50"
37" Tire Fitment: Requires Up-Travel Limiters
Front 37" Tire Limiter: 611075
Rear 37" Tire Limiter: 611074
Shocks Serviceable: Yes
Installation: 100% Bolt-On
Drilling/Cutting/Welding Required: No
ADAS Recalibration Required: Yes
Shipping Weight: 179 lbs.
UPC: 840103416250

Frequently Asked Questions

What Broncos does ICON K40015 fit?
ICON lists K40015 for 2021-2026 Ford Broncos equipped with the Sasquatch Package.

Does K40015 fit the Bronco Raptor?
No. ICON specifically states that K40015 does not fit the Bronco Raptor.

How much lift does K40015 provide?
ICON lists 2-3 inches of front lift and 1.25-2.25 inches of rear lift over stock 4-door Sasquatch Broncos.

What is the difference between ICON K40014 Stage 4 and K40015 Stage 5?
Stage 5 adds ICON 44000 billet aluminum rear lower links, improving rear articulation, strength and ground clearance while adding on-vehicle link-length and pinion-angle adjustment.

Which upper control arms are included?
K40015 includes ICON 48500DJ billet aluminum upper control arms with Delta Joint Pro.

Which rear lower links are included?
K40015 includes ICON 44000 billet aluminum rear lower links.

Can the rear pinion angle be adjusted?
Yes. The billet rear lower links provide on-vehicle link-length and pinion-angle adjustment.

Do the rear links have rock protection?
Yes. ICON's billet rear lower links include replaceable rock skids.

How much articulation does Delta Joint Pro provide?
ICON specifies 90 degrees of total articulation.

How much suspension travel does K40015 provide?
With 35" tires, ICON lists up to 11.5 inches of front travel and 14 inches of rear travel.

What rear springs are included?
K40015 uses ICON's triple-rate rear coil springs, optimized for a near-stock-weight Bronco.

Can I run 35-inch tires?
Yes. ICON recommends 35" x 12.50" tires with its specified aftermarket wheel dimensions.

Can I run 37-inch tires?
Yes, but ICON requires 611075 front and 611074 rear up-travel limiters, along with possible minor trimming.

Will factory wheels and tires fit?
ICON specifies OEM Wheels & Tires Fitment: No for K40015.

Does K40015 fit the Bronco Everglades?
Yes. ICON notes that Everglades models will have approximately 1.5-2.5 inches of front lift over stock.

Can the rear reservoir brackets interfere with rock sliders?
Yes. ICON notes that rear reservoir brackets may interfere with some aftermarket steps or rock slider mounts, and modifications may be required.

Can aftermarket steering components cause clearance issues?
Yes. ICON warns that certain aftermarket steering components may not be compatible because of tight clearances around the front coilovers.

Are the ICON shocks rebuildable?
Yes. ICON states that the shocks included with K40015 are fully serviceable.

Does installation require cutting or welding?
No. K40015 is designed as a 100% bolt-on system with no drilling, cutting or welding required.

Does ADAS need to be recalibrated after installation?
Yes. ICON specifically requires ADAS recalibration after installation.
