ICON Stage 2 Suspension System with Tubular UCA – 2021-2026 Ford Bronco HOSS 2.0 | K40012T

Upgrade your Bronco's suspension performance, ride height and front-end geometry with the ICON Vehicle Dynamics Stage 2 Suspension System, part #K40012T.

Designed specifically for the 2021-2026 Ford Bronco equipped with the HOSS 2.0 suspension package, this Stage 2 system combines a complete set of ICON 2.5 EXP Series internal-reservoir shocks with ICON tubular steel upper control arms featuring Delta Joint Pro.

The EXP Series shocks reuse the Bronco's factory coil springs and upper spring hardware while providing improved damping, increased shock oil capacity, better heat dissipation and selectable ride height. Multiple snap-ring grooves machined into the shock bodies provide up to 2 inches of front lift and 1.75 inches of rear lift over stock.

Stage 2 adds ICON's tubular upper control arms, providing increased strength, durability and alignment correction at increased ride heights. The UCAs feature ICON's patented Delta Joint Pro, providing 90 degrees of total articulation for increased suspension travel.

Vehicle Fitment

Ford Bronco

• 2021-2026

• HOSS 2.0 suspension package only

• 2-door and 4-door models

• Sasquatch and applicable non-Sasquatch HOSS 2.0 models

DOES NOT FIT:

• Ford Bronco Raptor

• Broncos equipped with suspension packages other than HOSS 2.0

IMPORTANT: ICON specifies that K40012T only fits Ford Broncos equipped with the HOSS 2.0 suspension package.

How to Identify HOSS 2.0

ICON identifies HOSS 2.0 as Ford's upgraded suspension package used on several Bronco configurations.

HOSS 2.0 applications include:

• Base with optional Sasquatch Package

• Big Bend with optional Sasquatch Package

• Outer Banks with optional Sasquatch Package

• Black Diamond with optional Sasquatch Package

• Badlands

• Wildtrak

• First Edition

• Everglades

HOSS 2.0 is most easily identified by the factory yellow shock bodies.

Features

• Complete ICON Stage 2 Suspension System

• Fits 2021-2026 Ford Bronco with HOSS 2.0

• Four ICON 2.5 EXP Series internal-reservoir shocks

• ICON tubular steel upper control arms

• ICON patented Delta Joint Pro

• 90 degrees of total UCA articulation

• Improved caster correction and alignment

• Adjustable 0-2" front lift

• Adjustable 0-1.75" rear lift

• Reuses factory Bronco coil springs

• Reuses factory coil and upper mount hardware

• Vehicle-specific shock tuning

• Increased wheel travel

• Improved shock damping and vehicle control

• Improved on-road ride quality

• Improved off-road suspension performance

• 2.5-inch aluminum shock bodies

• Increased shock oil volume

• Improved heat dissipation

• Heavy-duty 7/8" shock shafts

• One-piece digressive piston design

• Impact-extruded aluminum cylinders

• Hard-anodized finish for corrosion and abrasion resistance

• CNC-machined 6061 aluminum components

• PTFE-lined spherical bearings

• Fully rebuildable

• Fully re-tunable

• 100% bolt-on installation

• No cutting or welding required

• ICON Vehicle Dynamics part number K40012T

What Does Stage 2 Add Over Stage 1?

The primary upgrade from ICON K40011 Stage 1 to K40012T Stage 2 is the addition of ICON's tubular upper control arms.

Stage 1 includes:

• Two ICON 48602 front EXP shocks

• Two ICON 48612 rear EXP shocks

• Factory Bronco coil springs retained

• Adjustable ride height

Stage 2 adds:

• ICON 48400DJ Tubular Upper Control Arm Kit

• Delta Joint Pro

• 90 degrees of total articulation

• Caster correction

• Improved alignment capability

• Increased UCA strength and durability

• Increased joint articulation for additional suspension travel

The Stage 2 system is especially beneficial when using the higher EXP ride-height settings where proper front suspension geometry becomes increasingly important.

Adjustable Ride Height

ICON's EXP Series shocks use snap-ring grooves machined into the shock bodies to provide selectable ride-height adjustment.

ICON's current key specifications list:

Front Lift Range: 0-2"
Rear Lift Range: 0-1.75"

Because the system retains the factory coil springs, the spring seat is repositioned on the shock body to select the desired ride height.

NOTE: ICON's overview text currently also references 1.375-3" front and 1.5-2.25" rear lift, while its product title, Key Features and technical specifications list the system as 0-2" front / 0-1.75" rear. For customer-facing fitment, we recommend using ICON's stated 0-2" front and 0-1.75" rear specification.

ICON also notes that advertised lift heights are based on a stock-equipped vehicle.

2-door Broncos will sit taller than 4-door models.

Added weight from aftermarket bumpers, winches, skid plates and other accessories can also affect actual ride height.

ICON 2.5 EXP Series Shocks

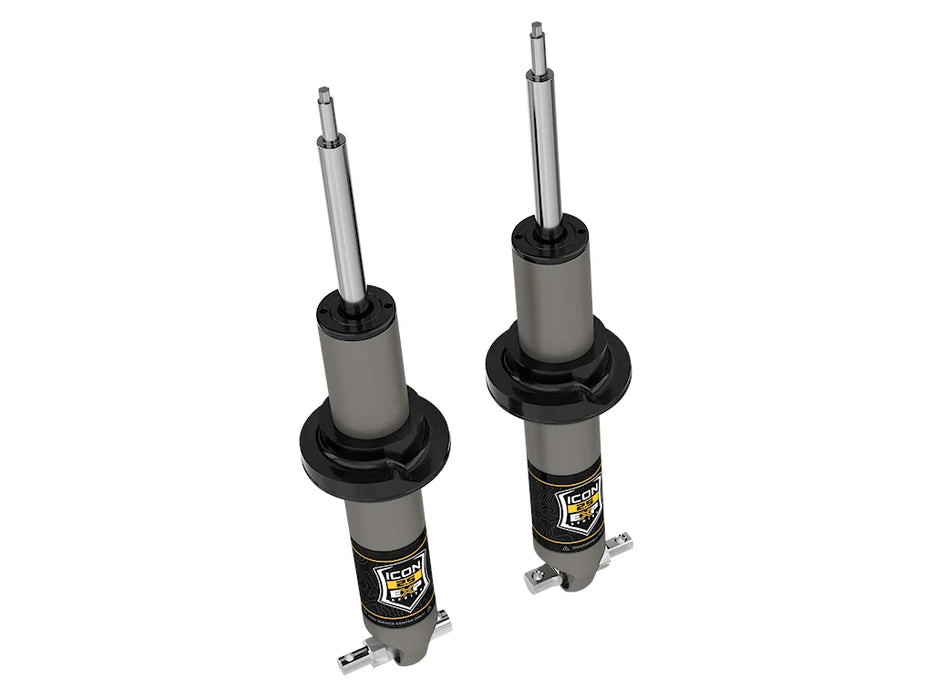

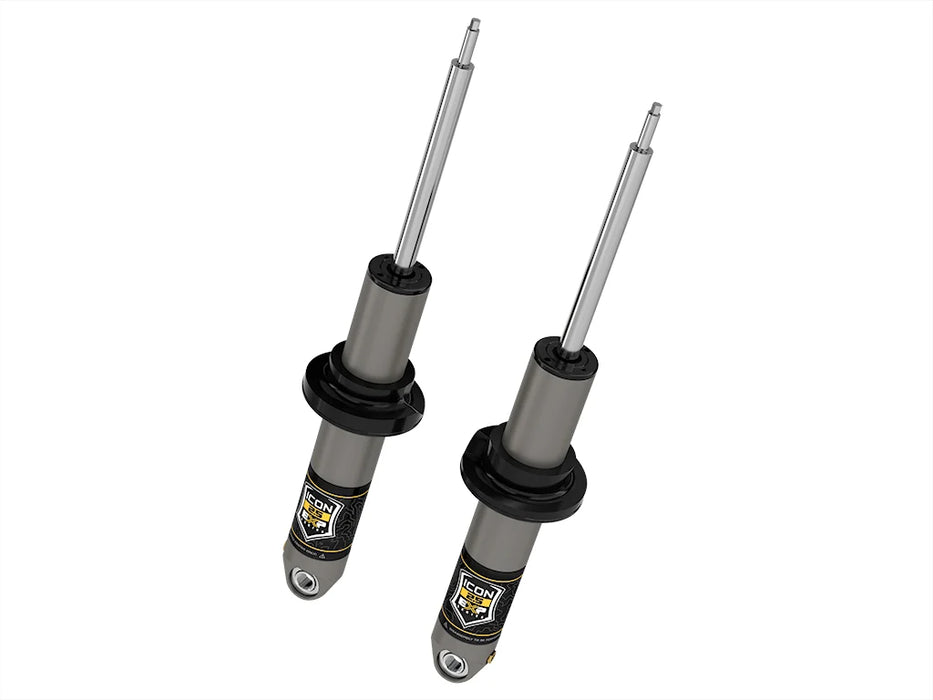

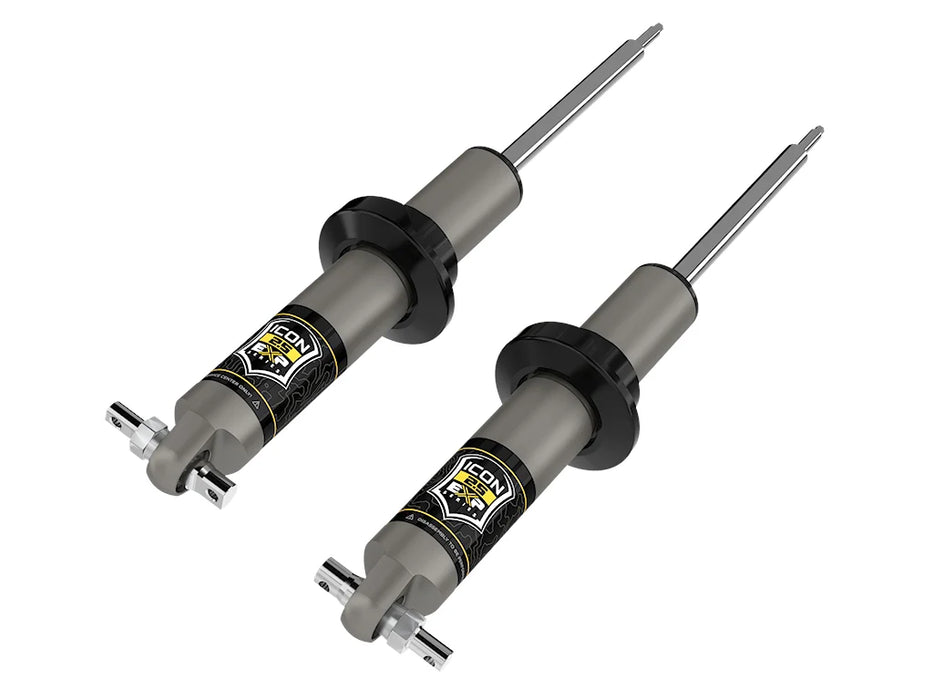

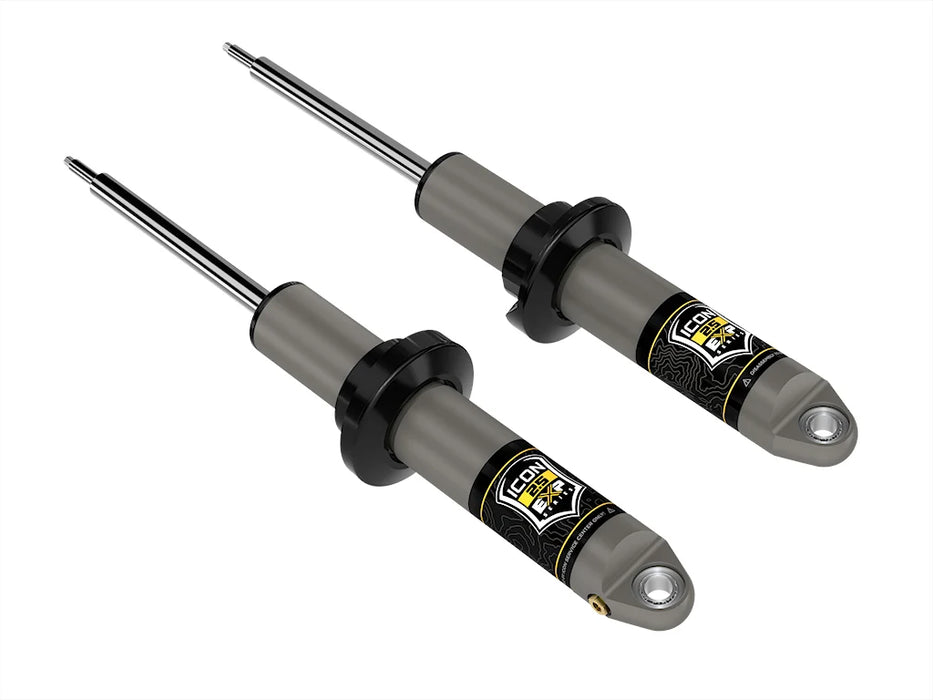

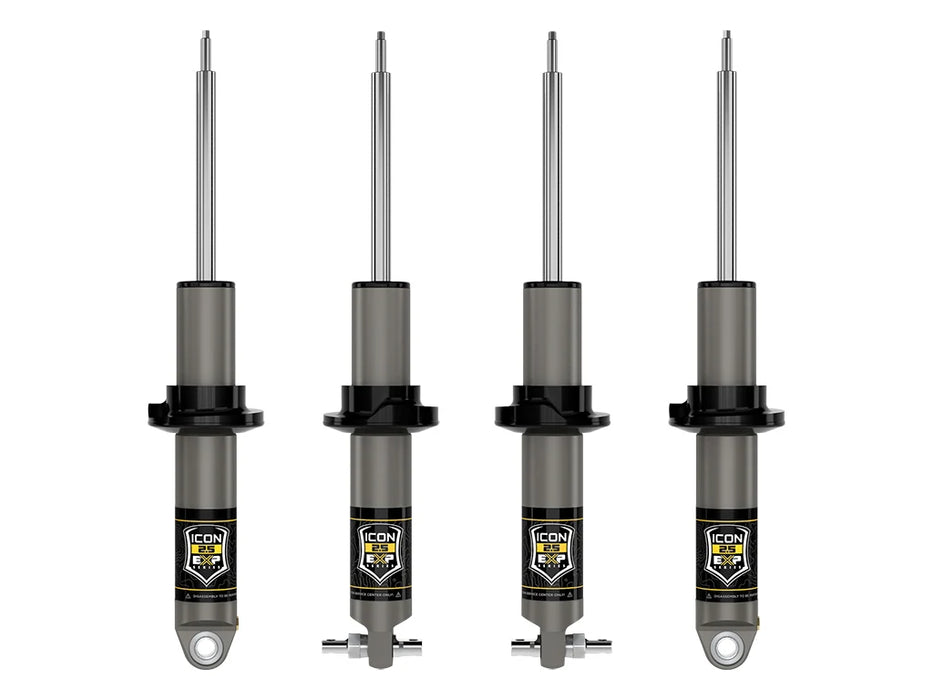

The K40012T includes four ICON 2.5 EXP Series internal-reservoir shocks.

EXP Series is based on ICON's proven 2.5-inch Aluminum Series shock architecture and combines premium shock performance with the ability to reuse the Bronco's factory coil springs.

Key features include:

• 2.5-inch shock bodies

• Internal reservoir design

• Increased piston size

• Increased shock oil volume

• Improved heat dissipation

• One-piece digressive piston design

• Vehicle-specific valving

• Hard-anodized aluminum cylinders

• 7/8-inch induction-hardened, chrome-plated shock shafts

• CNC-machined 6061 aluminum components

• PTFE-lined spherical bearings

• Fully rebuildable

• Fully re-tunable

The larger piston and increased oil capacity provide improved thermal performance compared with the Bronco's smaller factory steel-bodied shocks, helping maintain more consistent damping during prolonged rough-terrain use.

Factory Coil Spring Retention

ICON EXP shocks are specifically designed to reuse the Bronco's factory coil springs and related coil hardware.

Benefits include:

• Retains factory coil springs

• Retains factory spring rates

• Retains factory coil hardware

• Lower cost than complete replacement coilovers

• Selectable ride height

• Increased shock performance

• Improved heat management

• Fully serviceable shock construction

For Bronco owners satisfied with their factory HOSS 2.0 spring rates but looking for better damping, additional ride height and improved suspension performance, the EXP system provides an excellent upgrade.

ICON Tubular Upper Control Arms

K40012T includes the ICON 48400DJ Tubular Upper Control Arm Kit.

These heavy-duty UCAs are designed to accommodate the increased ride height and suspension travel available from the EXP shocks.

Key benefits include:

• Heavy-duty tubular steel construction

• Increased strength and durability

• Improved front suspension geometry

• Caster correction

• Improved alignment capability

• Increased joint articulation

• Designed to complement ICON EXP suspension travel

• ICON Delta Joint Pro

ICON Delta Joint Pro

The tubular upper control arms feature ICON's patented Delta Joint Pro.

Delta Joint Pro provides the high-angle movement needed for increased suspension travel while retaining the durability and environmental protection desirable for a daily-driven Bronco.

ICON specifies:

90 Degrees of Total Articulation

This increased articulation allows the UCA joint to accommodate the additional suspension travel provided by the ICON EXP system.

Vehicle-Specific Shock Tuning

ICON tunes the EXP shocks specifically for the Ford Bronco and its factory coil springs.

The shocks use a one-piece digressive piston design engineered to provide improved damping and vehicle control while maintaining excellent ride quality.

The system is suitable for:

• Daily street driving

• Highway driving

• Trail use

• Overlanding

• Washboard roads

• Rough terrain

• Higher-speed off-road driving

35" Tire Fitment

ICON recommends 35" x 12.50" tires with the appropriate wheel specifications.

Non-Sasquatch Bronco

When running 35" tires on a non-Sasquatch Bronco, ICON recommends:

ICON #42000 High Clearance Crash Bar Kit

Sasquatch Bronco

ICON also recommends 35" x 12.50" tires with appropriate Sasquatch-compatible wheel specifications.

37" Tire Fitment

ICON notes that 37-inch tire packages require additional modifications.

For 37" tires:

• Use ICON #611082 Front Bump Stop Spacer Kit

• Fender trimming and additional modifications may be required

• Crash bar removal may be required

ICON specifically notes that while crash bar removal may be necessary with some 37" configurations, crash bar removal is not recommended.

Wheel Recommendations

ICON confirms:

OEM Wheels & Tires Fitment: YES

For aftermarket wheels without the Sasquatch Package:

17" Wheels

• 17x8.5"

• 5.75" backspacing

• 25mm offset

18" Wheels

• 18x9"

• 6.00" backspacing

• 25mm offset

For Broncos with the Sasquatch Package:

17" Wheels

• 17x8.5"

• 4.75" backspacing

• 0mm offset

18" Wheels

• 18x9"

• 5.00" backspacing

• 0mm offset

20" Wheels

• 20x9"

• 5.00" backspacing

• 0mm offset

Recommended Tire Size:
35" x 12.50"

2-Door vs. 4-Door Ride Height

ICON specifically notes:

2-door Bronco models will sit taller than 4-door models.

Customers should keep this in mind when selecting the EXP snap-ring position and desired final ride height.

Actual lift can also vary depending on:

• Vehicle weight

• Bumper and winch weight

• Skid plates

• Roof racks

• Cargo

• Other permanently installed accessories

ADAS Recalibration Required

ICON specifies that installation of K40012T requires recalibration of the Bronco's Advanced Driver Assistance Systems (ADAS).

Changing vehicle ride height can affect the operation or calibration of cameras, sensors and driver-assistance systems.

ADAS recalibration should therefore be included as part of the installation process.

Fully Rebuildable & Re-Tunable

ICON EXP shocks are fully rebuildable and re-tunable.

Qualified shock technicians can service the shocks as components wear and can alter the internal valving if desired.

This provides a significant long-term advantage compared with non-serviceable replacement shocks.

Bolt-On Installation

The ICON K40012T Stage 2 Suspension System is designed as a 100% bolt-on suspension upgrade.

No cutting or welding is required for suspension installation.

A professional wheel alignment should be performed after installation and final ride-height adjustment.

ADAS recalibration is required after installation.

System Components

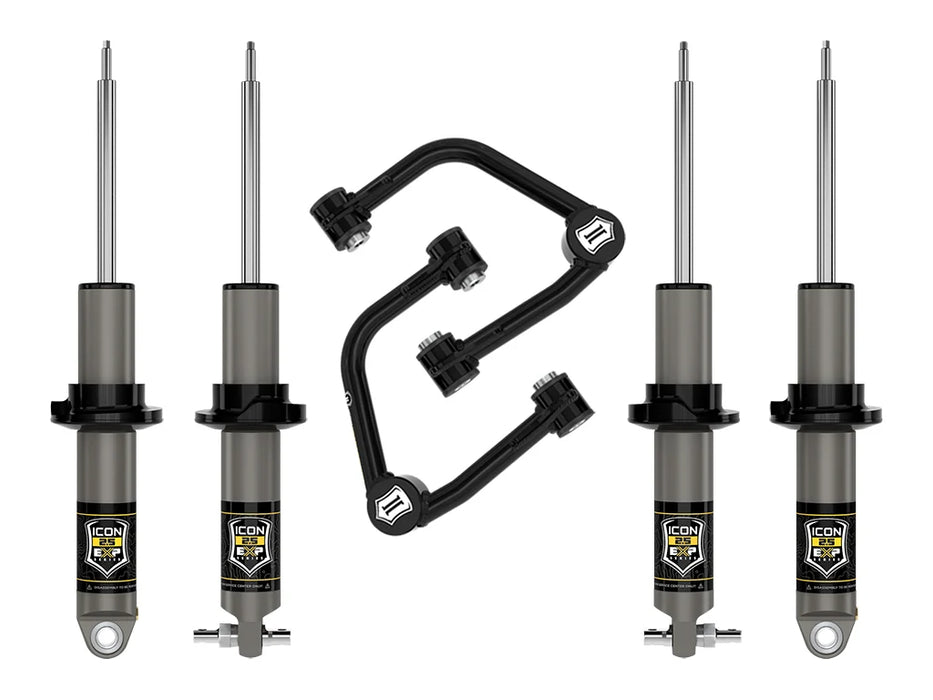

The ICON K40012T Stage 2 Suspension System includes:

Front EXP Coilovers

• ICON 48602

• Quantity: 2

• 2.5 EXP Series

• Internal reservoir

• Uses factory front coil springs

• Adjustable ride height

Tubular Upper Control Arms

• ICON 48400DJ

• Quantity: 1 kit

• Heavy-duty tubular steel construction

• ICON Delta Joint Pro

• 90 degrees total articulation

• Caster correction and improved alignment

Rear EXP Coilovers

• ICON 48612

• Quantity: 2

• 2.5 EXP Series

• Internal reservoir

• Uses factory rear coil springs

• Adjustable ride height

Product Specifications

Manufacturer: ICON Vehicle Dynamics
Part Number: K40012T
Product: Stage 2 Suspension System
Vehicle: Ford Bronco
Model Years: 2021-2026
Required Suspension: HOSS 2.0
Bronco Raptor Compatible: No
Front Shock Series: ICON 2.5 EXP
Rear Shock Series: ICON 2.5 EXP
Shock Type: Internal Reservoir
Front Lift Range: 0-2"
Rear Lift Range: 0-1.75"
Factory Coil Springs Retained: Yes
Upper Control Arms: Tubular Steel
UCA Part Number: 48400DJ
UCA Joint: Delta Joint Pro
UCA Articulation: 90 Degrees Total
Shock Shaft Diameter: 7/8"
Front Shock Component: 48602
Rear Shock Component: 48612
OEM Wheel & Tire Fitment: Yes
Recommended Tire Size: 35" x 12.50"
37" Tire Support: Additional modifications required
Shocks Rebuildable: Yes
Shocks Re-Tunable: Yes
Installation: 100% Bolt-On
Cutting/Welding Required: No
ADAS Recalibration Required: Yes
Shipping Weight: 76 lbs.
UPC: 840103420929

Frequently Asked Questions

What Broncos does ICON K40012T fit?
K40012T fits 2021-2026 Ford Broncos equipped specifically with the HOSS 2.0 suspension package.

Does K40012T fit the Bronco Raptor?
No. ICON specifically states that K40012T does not fit the Bronco Raptor.

What is the difference between ICON K40011 Stage 1 and K40012T Stage 2?
K40012T adds ICON's 48400DJ tubular upper control arms with Delta Joint Pro. The front and rear EXP shocks remain the same.

What is the difference between K40012 and K40012T?
K40012 uses billet aluminum upper control arms, while K40012T uses tubular steel upper control arms.

How much lift does K40012T provide?
ICON's Key Features specify 0-2 inches of front lift and 0-1.75 inches of rear lift using the EXP shock snap-ring adjustment.

Does K40012T replace the factory coil springs?
No. The EXP shocks are designed to reuse the Bronco's factory coil springs and coil hardware.

Which upper control arms are included?
K40012T includes ICON 48400DJ tubular steel upper control arms with Delta Joint Pro.

How much articulation does Delta Joint Pro provide?
ICON specifies 90 degrees of total articulation.

Can I use the factory wheels and tires?
Yes. ICON's current technical specifications explicitly state OEM Wheels & Tires Fitment: Yes.

Can I run 35-inch tires?
Yes. ICON recommends 35" x 12.50" tires. Non-Sasquatch Broncos should use the ICON #42000 High Clearance Crash Bar Kit.

Can I run 37-inch tires?
Potentially. ICON requires #611082 front bump stop spacers and notes that additional trimming and modifications may be required.

Will a 2-door Bronco get the same lift as a 4-door?
Not necessarily. ICON specifically states that 2-door models will sit taller than 4-door models.

Are the EXP shocks rebuildable?
Yes. ICON states that the EXP shocks are fully rebuildable and re-tunable.

Does installation require cutting or welding?
No. K40012T is designed as a 100% bolt-on suspension system.

Does the Bronco require ADAS recalibration afterward?
Yes. ICON specifically requires ADAS recalibration after installation.
