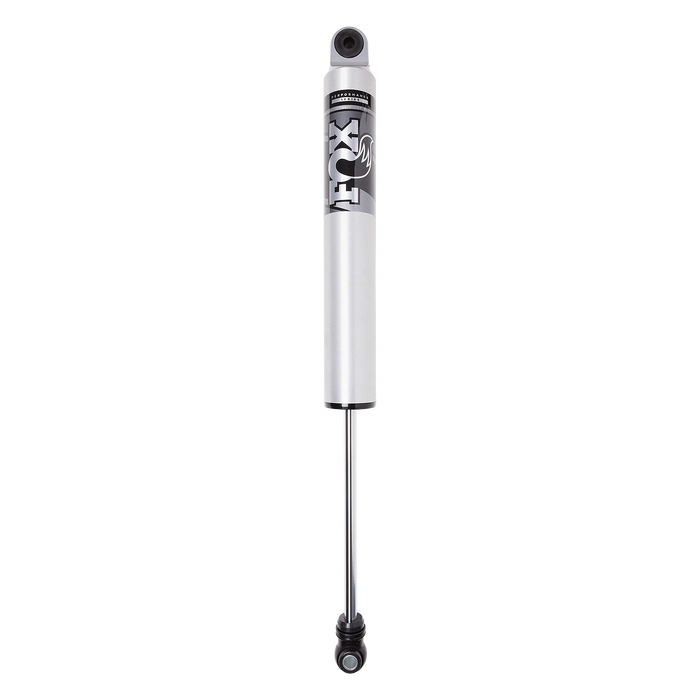

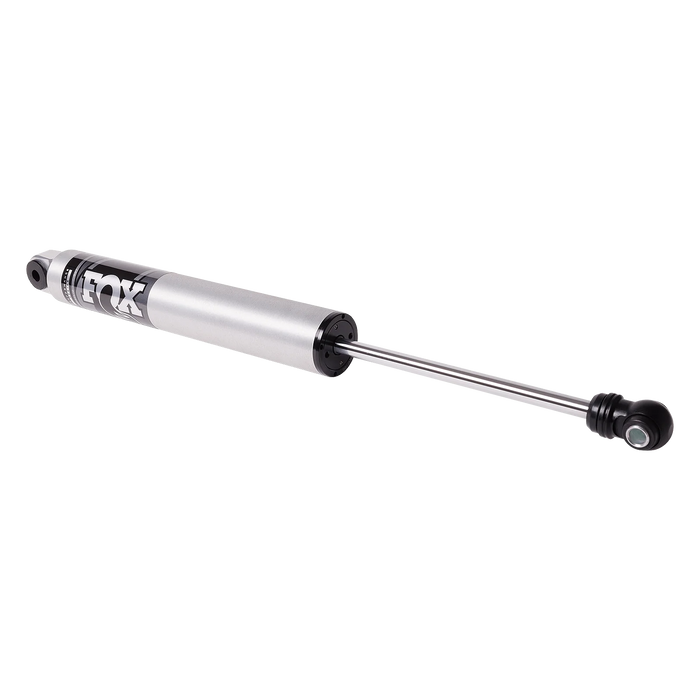

Fox 2.5 Performance Series IFP HTO Rear Shock for 2020–2025 Jeep Gladiator JT (3.5–4" Lift)

Upgrade your Jeep Gladiator JT's suspension with the Fox 2.5 Performance Series IFP HTO Rear Shock, designed for vehicles with a 3.5 to 4-inch lift. This shock absorber combines race-proven technology with daily driving comfort, ensuring optimal performance both on and off the road.

The 2.5-inch diameter 6061-T6 aluminum body is impact-extruded and Type II anodized for corrosion resistance and efficient heat dissipation. Inside, the Internal Floating Piston (IFP) separates shock oil from high-pressure nitrogen, delivering consistent damping performance. The Hydraulic Top Out (HTO) technology provides position-sensitive rebound damping control, improving comfort and reducing harsh top-outs by directing shock oil through a secondary shim stack to slow the shock shaft speed.

Key Features:

• Fits 2020–2025 Jeep Gladiator JT with 3.5–4" lift

• 2.5" impact-extruded 6061-T6 aluminum body

• Type II clear-anodized finish for corrosion resistance

• Internal Floating Piston (IFP) design

• Hydraulic Top Out (HTO) technology for improved rebound control

• High-flow velocity-sensitive damping

• 5/8" hard chrome-plated heat-treated alloy steel shaft

• Fully rebuildable and re-tunable

• Application-specific valving for optimized performance

Specifications:

• Extended Length: 30.72 inches

• Compressed Length: 19.54 inches

• Travel: 11.19 inches

• Mounting: Eyelet top and bottom

• Position: Rear

Note: Price is for one shock absorber. A quantity of two is required for most applications.
