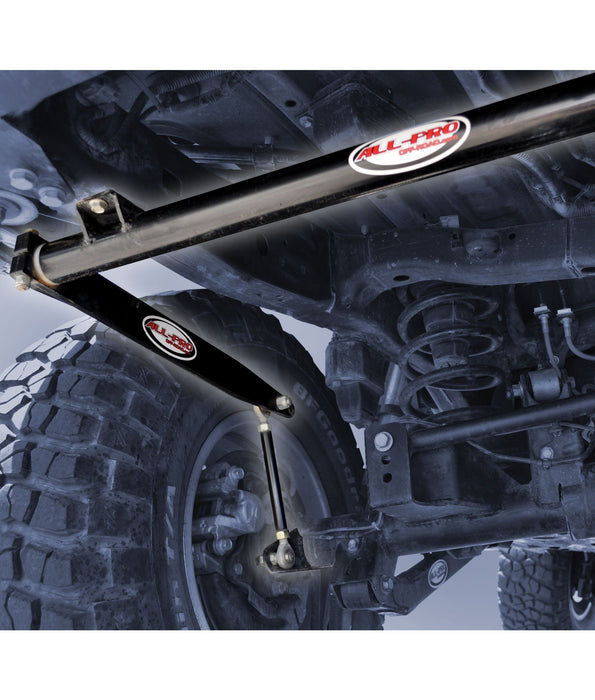

All-Pro Off-Road AntiRock Rear Sway Bar Kit – 2007-2014 Toyota FJ Cruiser | AP-306912

Improve the handling, stability and suspension performance of your lifted 2007-2014 Toyota FJ Cruiser with the All-Pro Off-Road AntiRock Rear Sway Bar Kit.

Developed jointly by Currie Enterprises and All-Pro Off-Road, this FJ Cruiser-specific rear sway bar system combines Currie's proven AntiRock sway bar technology with an All-Pro mounting system engineered specifically for the Toyota FJ Cruiser.

The result is a rear sway bar setup designed to improve handling both on-road and off-road while accommodating the increased suspension travel and geometry of a lifted FJ Cruiser.

Features

• Fits 2007-2014 Toyota FJ Cruiser

• Designed specifically for lifted FJ Cruisers

• Developed jointly by Currie Enterprises and All-Pro Off-Road

• Currie proprietary AntiRock sway bar shaft and arms

• All-Pro FJ Cruiser-specific mounting system

• Adjustable heim-joint sway bar end links

• Helps improve on-road and off-road handling

• Adjustable link length accommodates different suspension setups

• Includes bushings, mounting tabs and necessary hardware

• Primarily bolt-on installation

• Welding required for axle-mounted sway bar link tabs

• All-Pro Off-Road SKU AP-306912

Designed for Lifted FJ Cruisers

Lifting an FJ Cruiser changes the suspension geometry and can affect the operation of the factory sway bar system. The All-Pro AntiRock Rear Sway Bar Kit is designed specifically to provide improved handling and sway control on lifted FJ Cruisers while maintaining off-road suspension performance.

The system uses Currie's proprietary AntiRock sway bar shaft and arms combined with an FJ Cruiser-specific mounting system developed by All-Pro Off-Road.

This makes the kit an excellent suspension upgrade for FJ Cruisers used for:

• Off-roading

• Rock crawling

• Overlanding

• Trail driving

• Daily driving

• Lifted suspension applications

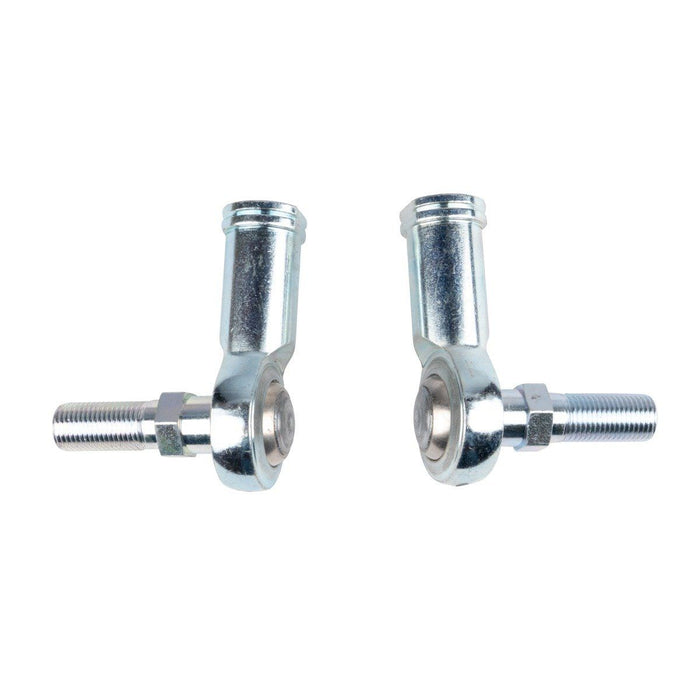

Adjustable Sway Bar End Links

The kit includes adjustable heim-joint sway bar links that can be tailored to your FJ Cruiser's suspension setup.

The supplied sway bar links are 14 inches long and include extra threaded length so they can be shortened as necessary for your particular suspension configuration.

Because lift height and suspension setups vary considerably between modified FJ Cruisers, the adjustable links allow the installer to properly configure the system for the vehicle.

Installation Information

Most of the AntiRock system is bolt-on, but some fabrication is required.

The sway bar link mounting tabs must be welded to the rear axle housing. All-Pro recommends that this welding be performed by a qualified or certified welder.

Depending on your suspension configuration and available clearance, minor trimming of the inner wheel wells may also be required to provide sufficient clearance for sway bar arm travel.

Important: Read the manufacturer's installation instructions completely before ordering and installing this product.

Vehicle Fitment

Toyota FJ Cruiser

• 2007

• 2008

• 2009

• 2010

• 2011

• 2012

• 2013

• 2014

Application: Rear suspension
Recommended Use: Lifted FJ Cruiser applications

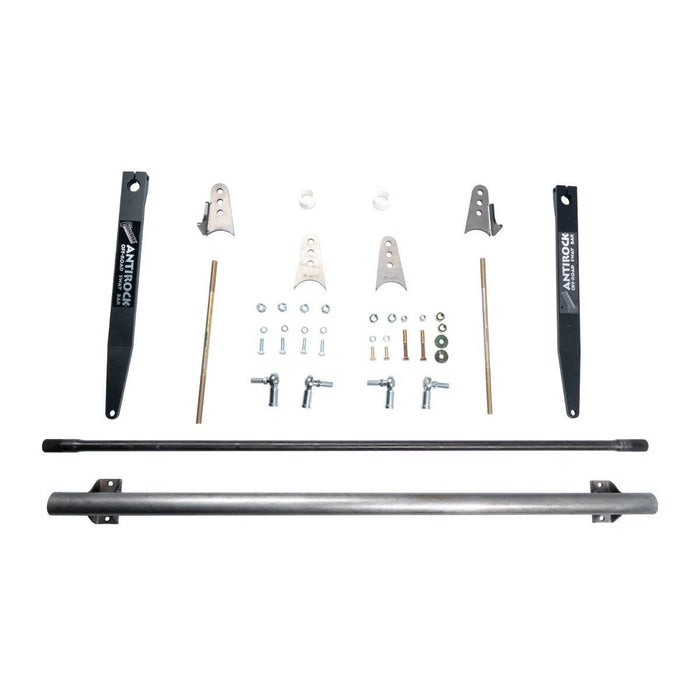

Kit Includes

• Currie AntiRock sway bar shaft

• AntiRock sway bar arms

• All-Pro FJ Cruiser-specific mounting system

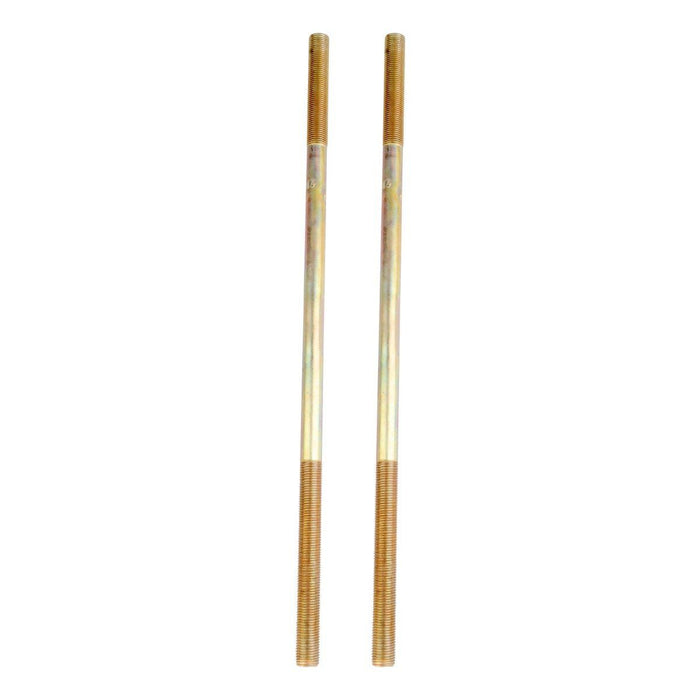

• Adjustable heim-joint sway bar links

• Bushings

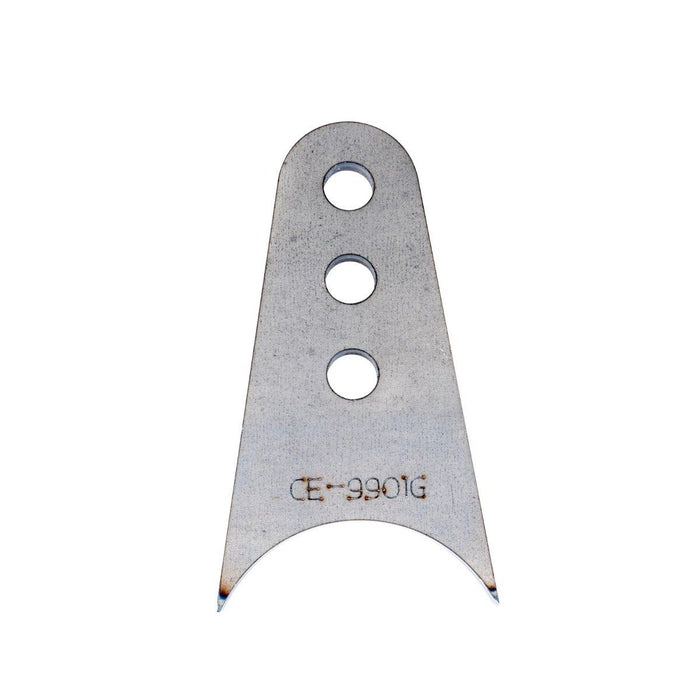

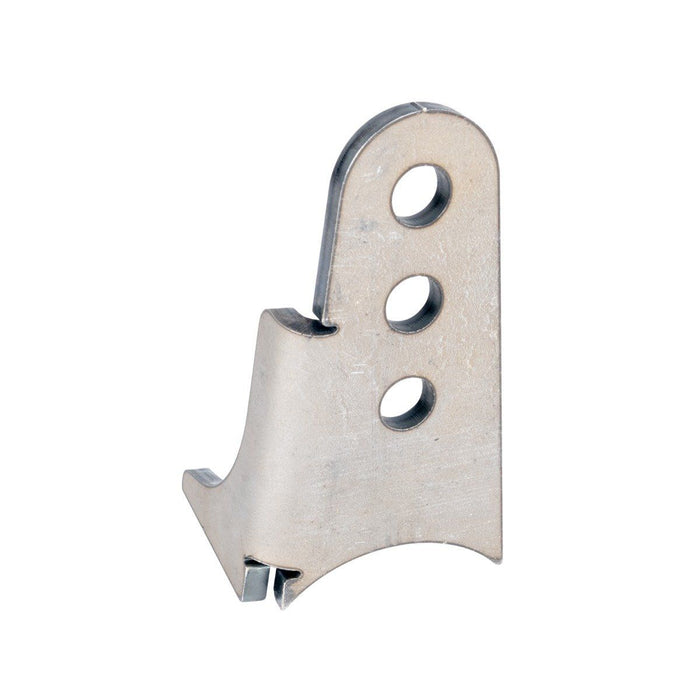

• Weld-on axle mounting tabs

• Required installation hardware

Important Installation Notes

Welding is required. The sway bar link tabs must be welded to the axle housing.

The included sway bar links are approximately 14 inches long and have additional threaded length so they can be cut to match the vehicle's suspension setup.

Minor inner wheel well trimming may be necessary to provide adequate clearance for the AntiRock sway bar arms throughout their range of travel.

Professional installation is recommended if you are not experienced with suspension setup, fabrication and welding.

Product Specifications

Manufacturer: All-Pro Off-Road
Developed With: Currie Enterprises
Product: Rear AntiRock Sway Bar Kit
SKU / Part Number: AP-306912
Position: Rear
Vehicle: Toyota FJ Cruiser
Model Years: 2007-2014
Application: Lifted Vehicles
Installation: Bolt-On with Weld-On Link Tabs
End Links: Adjustable Heim-Joint
Included Link Length: 14 Inches

Frequently Asked Questions

What years of Toyota FJ Cruiser does the AntiRock rear sway bar kit fit?
All-Pro lists the AP-306912 Rear AntiRock Sway Bar Kit for 2007-2014 Toyota FJ Cruiser models.

Is this sway bar designed for a lifted FJ Cruiser?
Yes. All-Pro specifically describes this kit as an upgrade for lifted FJ Cruisers and designed it to improve handling both on-road and off-road.

Does installation require welding?
Yes. While most of the kit is bolt-on, the sway bar link mounting tabs must be welded to the rear axle housing. Welding should be performed by a qualified welder.

Are the sway bar end links adjustable?
Yes. The kit includes adjustable heim-joint sway bar links. The supplied links are 14 inches long with additional threaded length so they can be shortened to properly match your suspension setup.

Does installation require cutting or trimming?
Possibly. All-Pro states that minor trimming of the inner wheel wells may be required to provide sufficient clearance for sway bar arm travel.

Who makes the AntiRock sway bar?
This FJ Cruiser kit was developed jointly by Currie Enterprises and All-Pro Off-Road. It combines Currie's proprietary AntiRock sway bar shaft and arms with All-Pro's FJ Cruiser-specific mounting system.
